12V Linear Actuator, 8 in Stroke, 1000N, IP54 Bracket

12V Linear Actuator, 8 in Stroke, 1000N, IP54 Bracket

Produktoptionen
Artikelnummer: 11378880184647

12V linear actuator delivers fast, controlled linear motion for frequent height adjustments and automation projects. With an 8-inch (203.2 mm)... Mehr lesen

Derzeit nicht verfügbar

€104,99  €94,99

    Sicher bezahlen mit

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Gratis Versand
    • Rückgabe innert 30 Tagen
    • Sicher bezahlen

    Spezifikationen

    Input voltageDC 12V
    Max load/thrust1000N (225 lb)
    Stroke length8 in (203.2 mm)
    Travel speed0.6 in/s (15 mm/s)
    Extended length20 in (508 mm)
    Retracted length12 in (304.8 mm)
    Current draw5 A
    Duty cycle25%
    IP ratingIP54
    Main materialAluminum alloy
    Net weight2.5 lb (1.113 kg)
    Product dimensions12.6 x 3 x 1.6 in (320 x 75 x 40 mm)

    Beschreibung

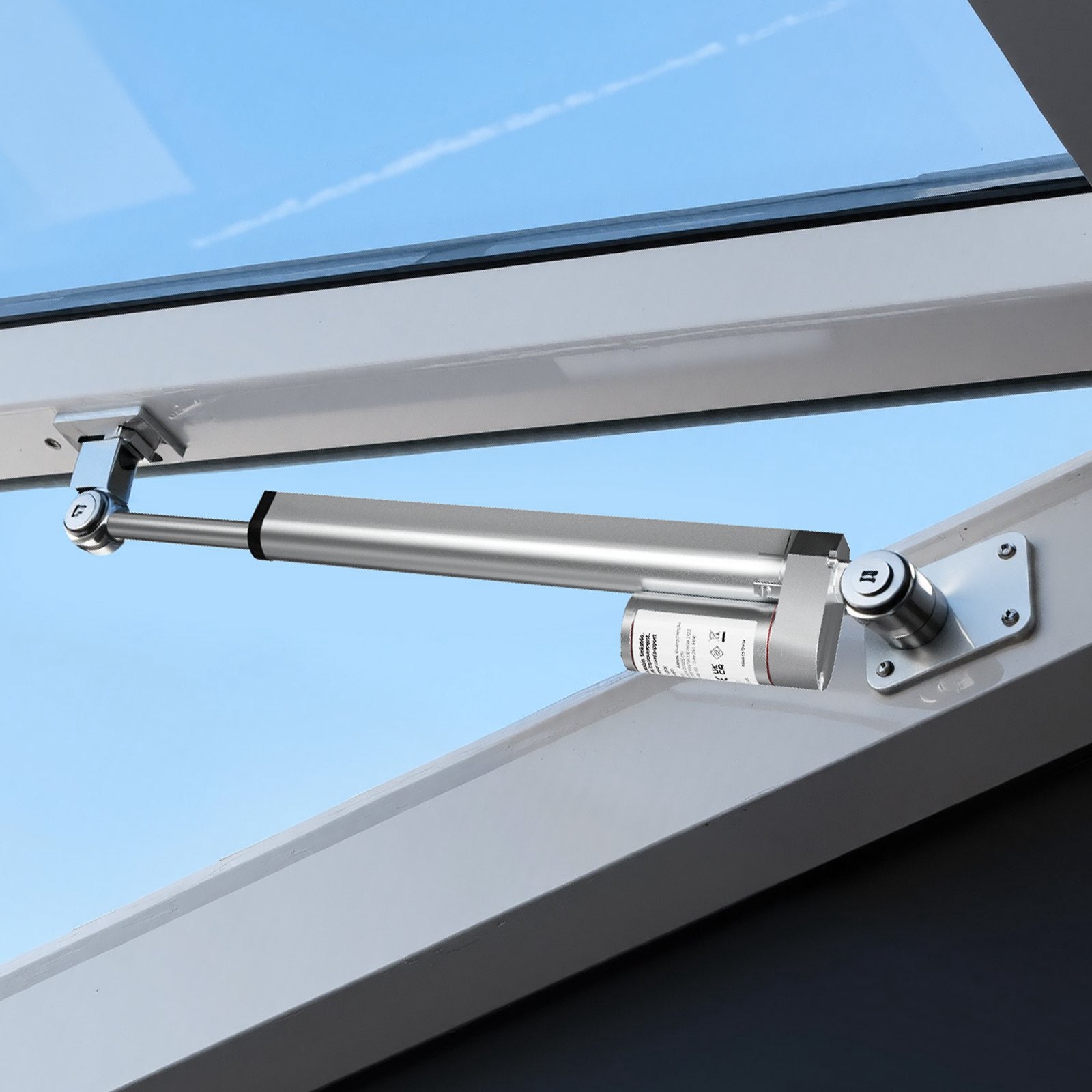

    12V linear actuator delivers fast, controlled linear motion for frequent height adjustments and automation projects. With an 8-inch (203.2 mm) stroke and 15 mm/s travel speed, it helps raise and lower desks, recliners, TV lifts, and window/door openers smoothly. A 1000N (225 lb) thrust rating and IP54 housing support reliable indoor use where consistent performance and quiet operation matter.

    Build cleaner, more dependable motion into your automation system with a compact actuator designed for smooth, repeatable travel. The balanced combination of stroke length, speed, and thrust supports common DIY and replacement applications—from recliner chair mechanisms to electric window openers—without bulky hardware. For longer service life, maintain the duty cycle and keep moisture out of the motor area. Grab yours today and upgrade your next linear motion project.

    Specifications
    • Delivers 1000N (225 lb) thrust for steady lifting, pushing, and positioning in home and light industrial setups
    • Moves at 15 mm/s (0.6 in/s) to speed up frequent adjustments like lift desks and lifting tables
    • Reduces disruption with under 50 dB no-load noise for offices, bedrooms, labs, and care environments

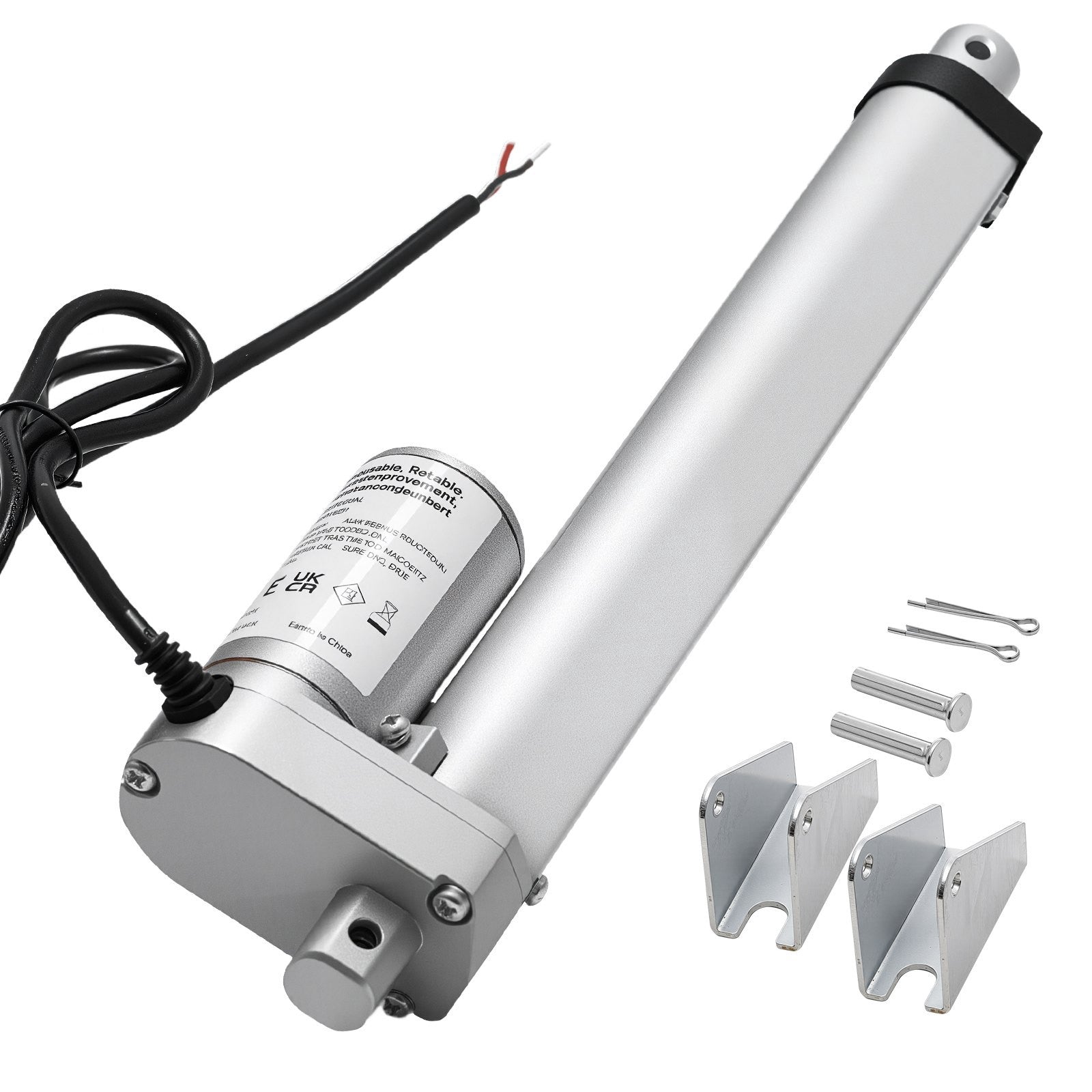

    • Includes mounting bracket for straightforward installation on furniture mechanisms and automation frames
    • Protects internals with IP54-rated aluminum alloy housing; recommended for indoor use away from direct water entry
