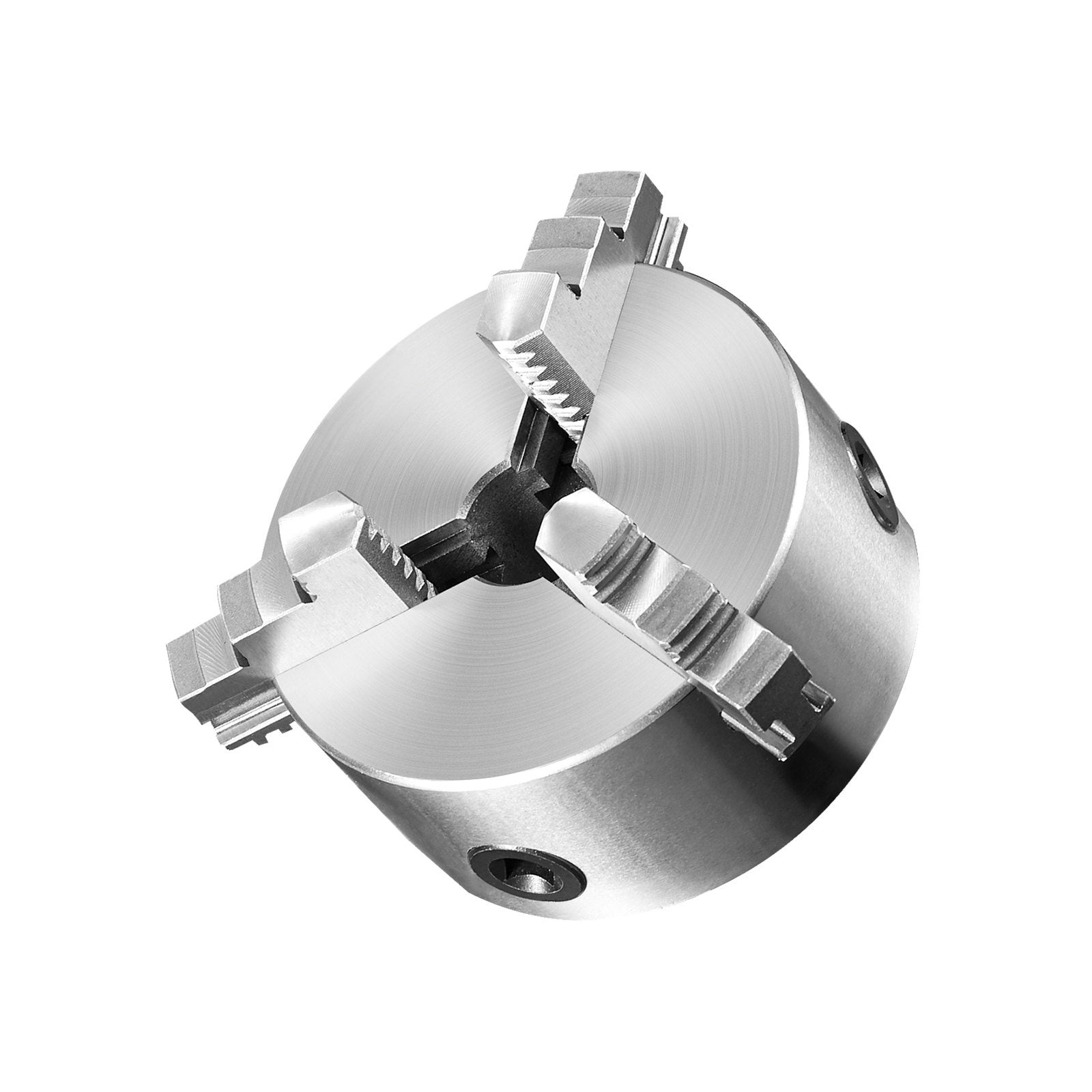

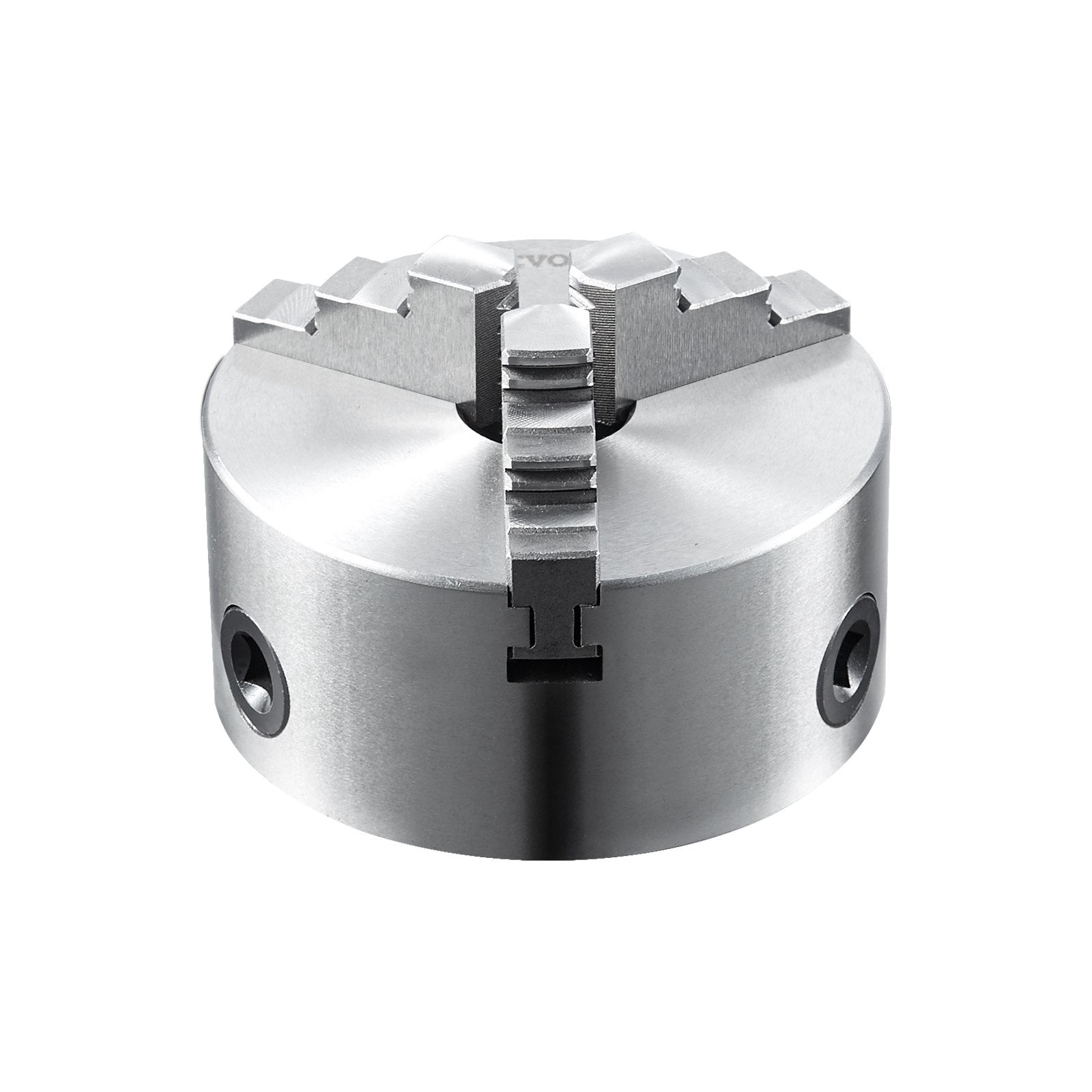

3-Jaw Lathe Chuck, 6-Inch Self-Centering, Reversible Jaws

3-Jaw Lathe Chuck, 6-Inch Self-Centering, Reversible Jaws

Produktoptionen
Artikelnummer: 11368850784583

3-jaw self-centering lathe chuck delivers fast, repeatable workholding so you can machine round stock with less setup time. Built for... Mehr lesen

Derzeit nicht verfügbar

€172,99  €156,99

    Sicher bezahlen mit

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Gratis Versand
    • Rückgabe innert 30 Tagen
    • Sicher bezahlen

    Spezifikationen

    Chuck type3-jaw self-centering, reversible jaws (internal & external)
    Chuck OD6 in / 160 ± 5 mm
    Clamping range (internal jaws)3.5–60 mm (0.138–2.36 in)
    Clamping range (external jaws)56–160 mm (2.2–6.3 in)
    Body materialHT300
    Jaw material/hardness20Cr, ≥53 HRC
    Scroll material/hardness40Cr, ≥45 HRC
    Bearing tolerance≤0.05 mm / 0.002 in
    Boreφ45 mm
    Surface finishRa ≤0.8, oil coated
    Fixed thread3 × M8
    Product sizeφ160 × 140 mm
    Net weight17.8 lb / 8.1 kg

    Beschreibung

    3-jaw self-centering lathe chuck delivers fast, repeatable workholding so you can machine round stock with less setup time. Built for lathes, milling, drilling, and machining centers, it uses a scroll-driven jaw system to center parts as you tighten. Reversible internal/external jaws expand the clamping range from small components to larger workpieces, while hardened steel contact surfaces support consistent gripping in daily shop use.

    When accuracy depends on stable workholding, a scroll-style chuck helps you keep parts centered and secure through turning, facing, and drilling operations. This 6-inch chuck is oil-coated for added corrosion protection and built with a compact, service-friendly structure for easy installation and daily adjustments. Use the internal jaws for smaller diameters, flip to external jaws for larger stock, and lock in your setup with the T-key. Grab yours today and keep your workflow moving with dependable, repeatable clamping.

    Specifications
    • Delivers self-centering clamping to reduce dial-in time and improve repeatability across parts.
    • Fits internal and external gripping with reversible jaws for 3.5–160 mm (0.14–6.3 in) range.

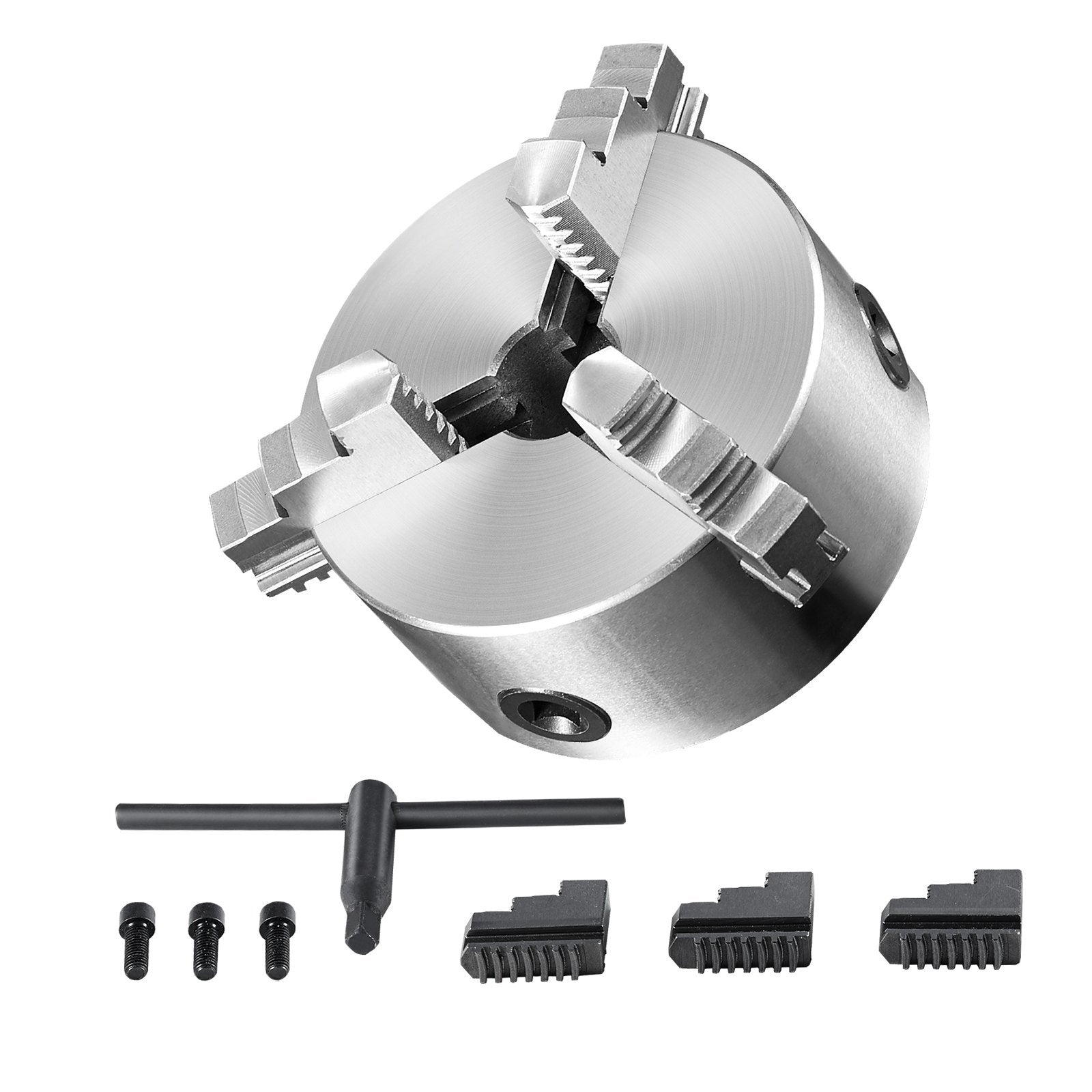

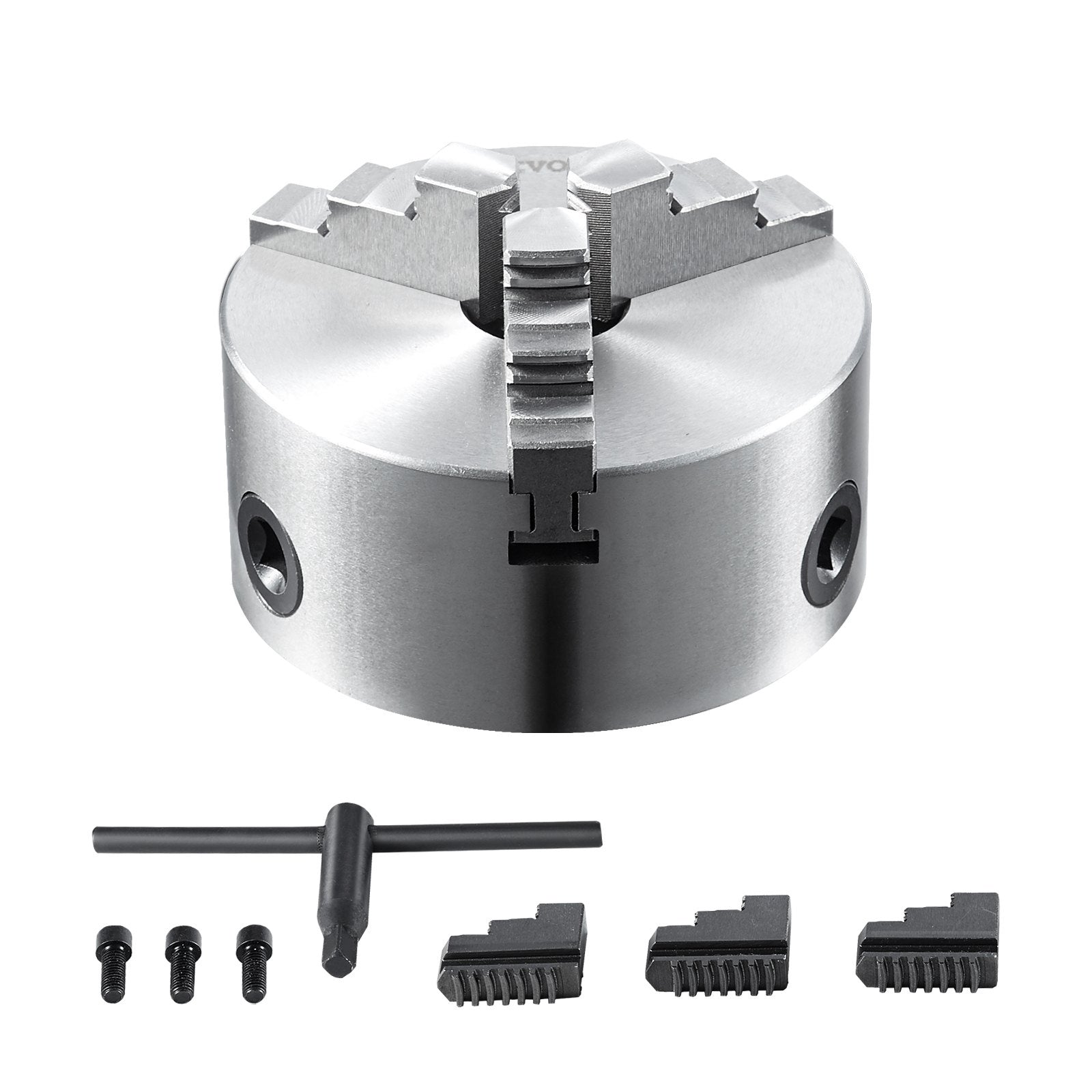

    • Includes T-key drive and fixing screws for straightforward tightening and jaw adjustment.
    • Supports precision work with ≤0.05 mm (0.002 in) bearing tolerance and smooth scroll action.
    • Handles shop duty with HT300 body, hardened 20Cr jaws (≥53 HRC), and 40Cr scroll (≥45 HRC).
