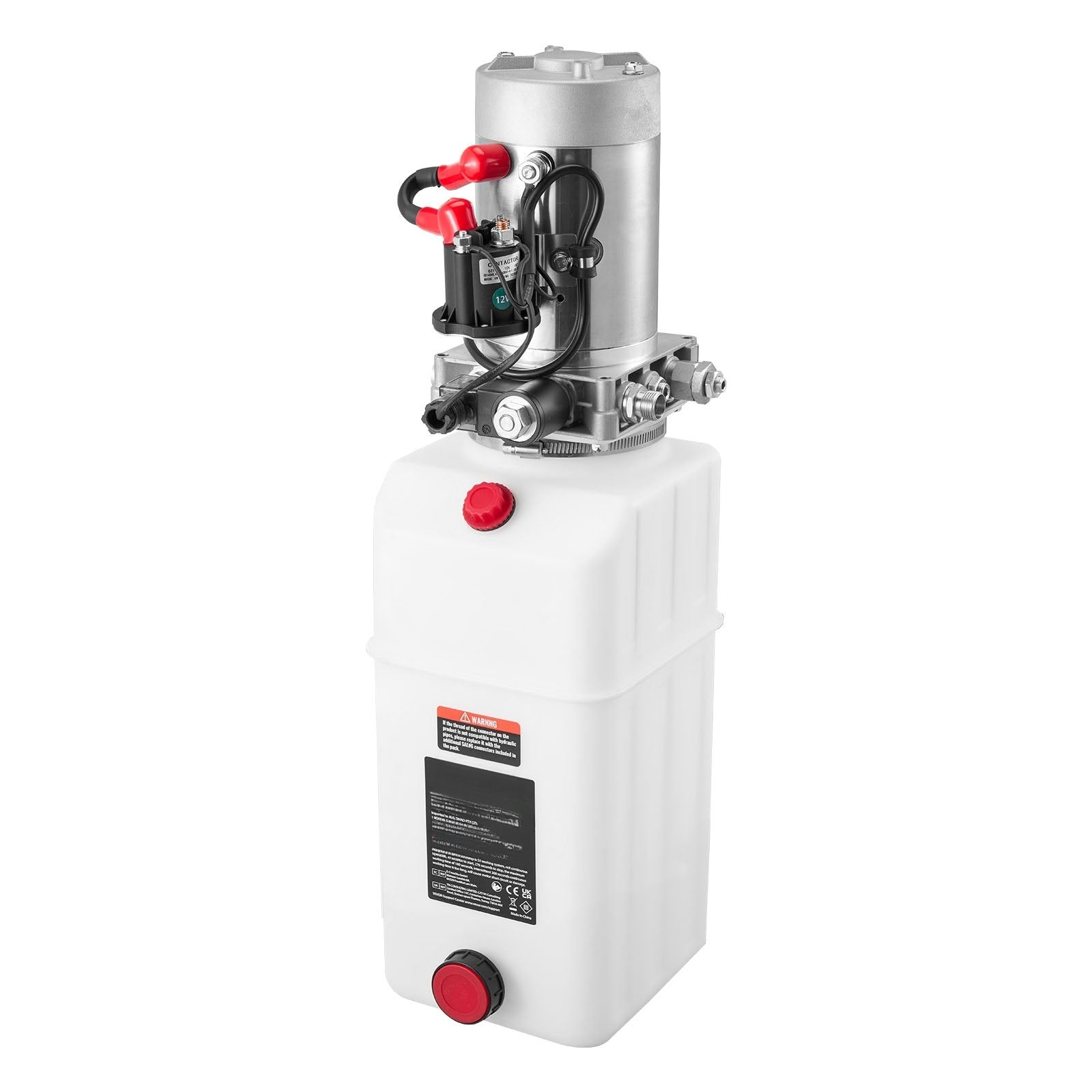

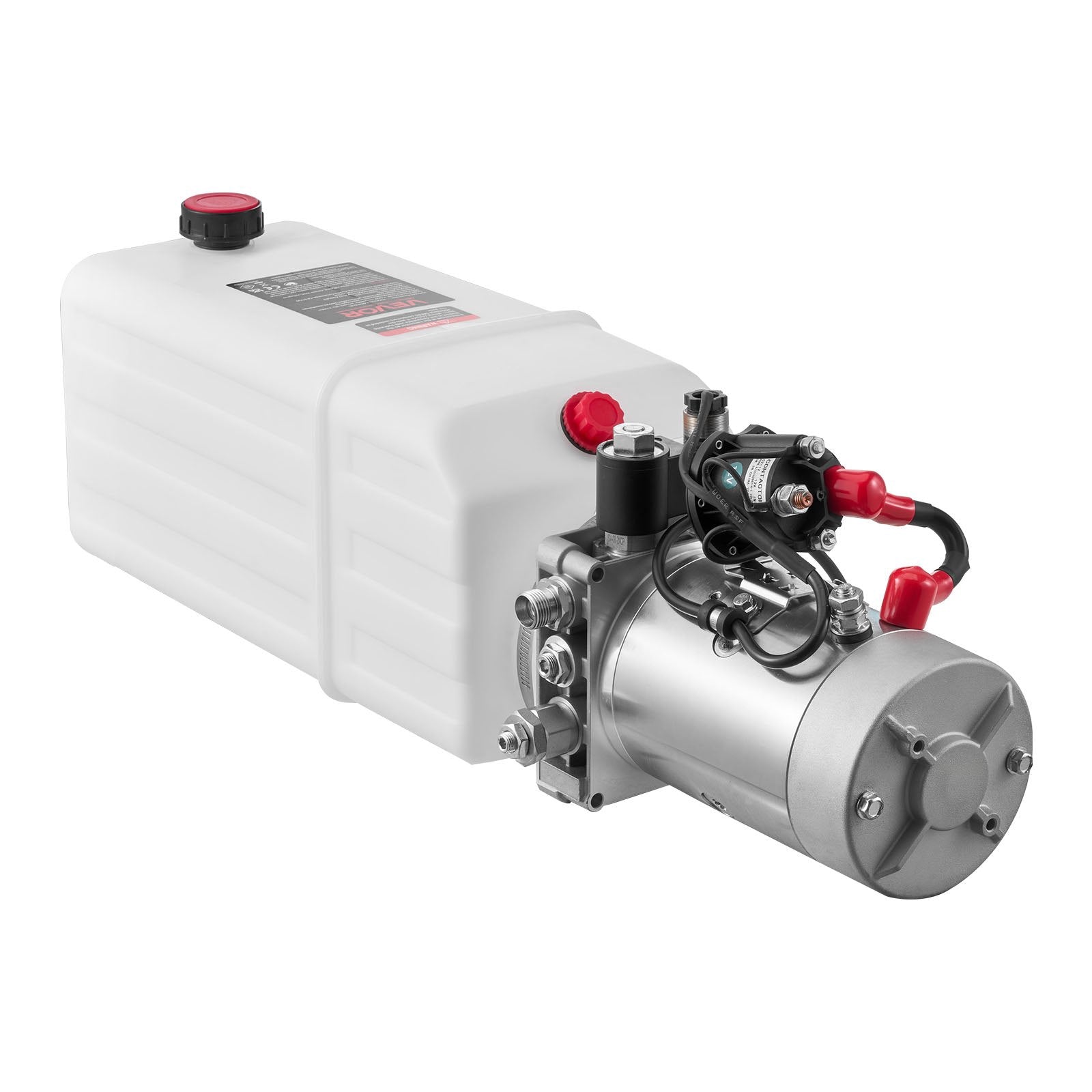

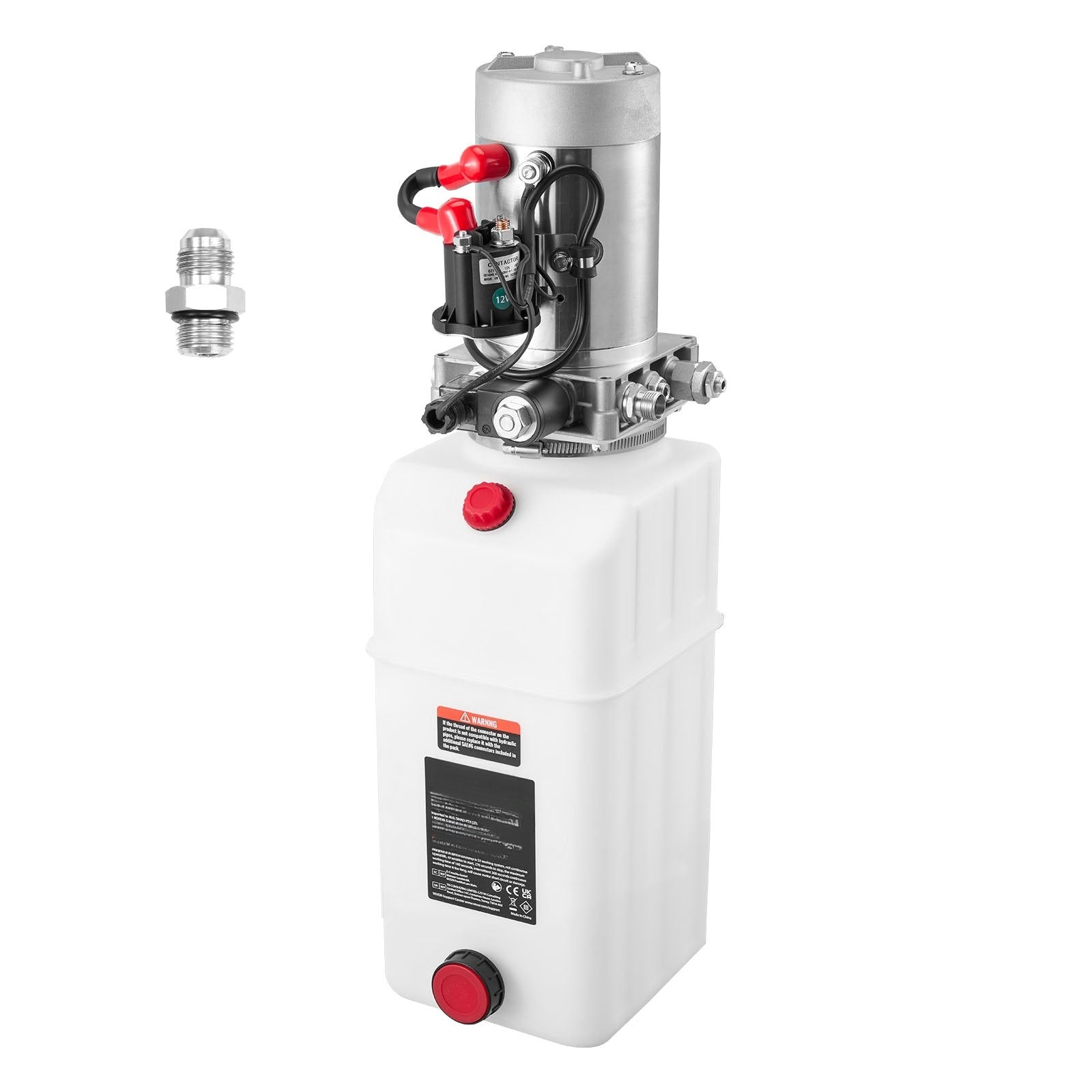

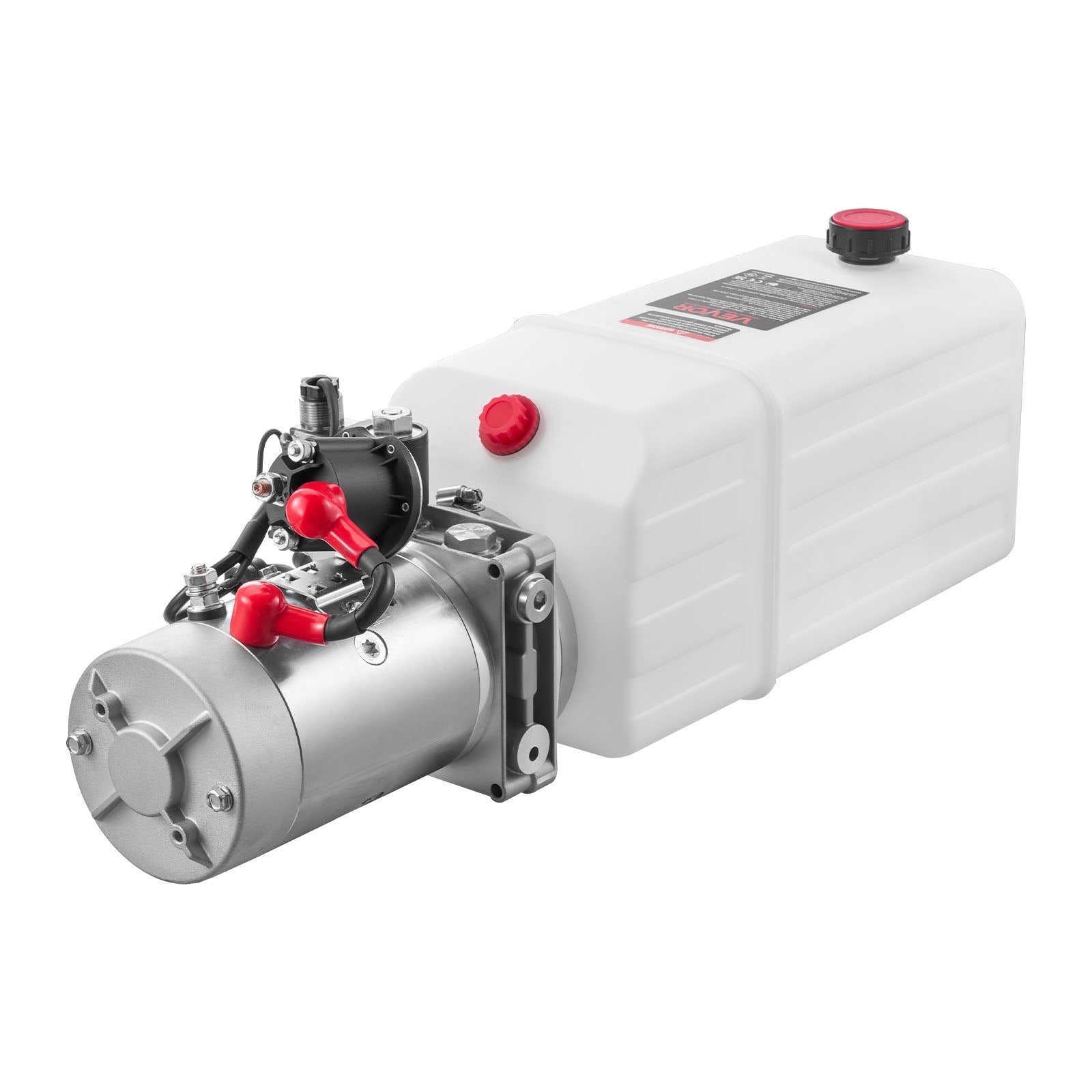

12V Hydraulic Power Unit, 6L Reservoir, Single-Acting
12V Hydraulic Power Unit, 6L Reservoir, Single-Acting

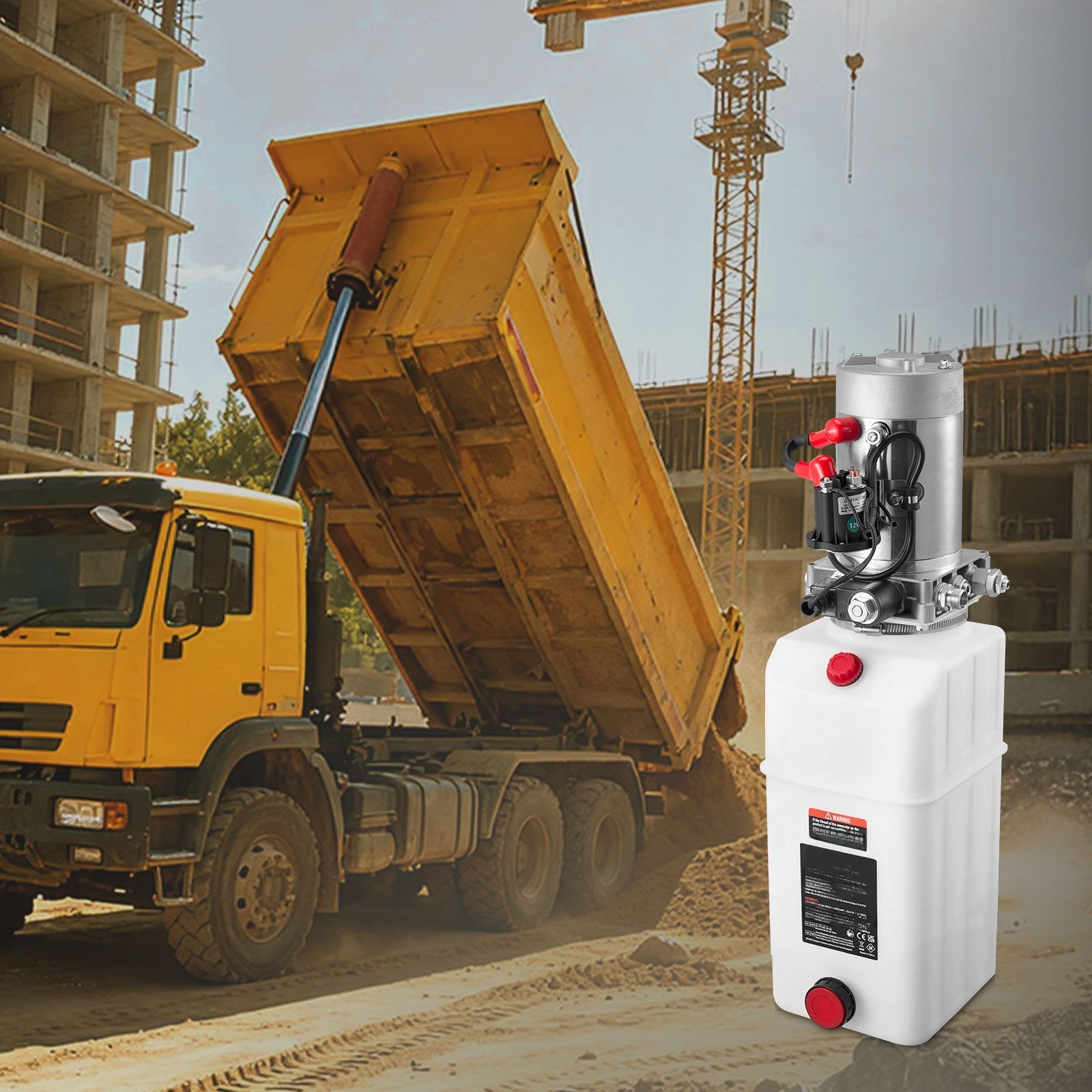

12V hydraulic power unit delivers steady lifting power for dump trailers and shop equipment with fast starts and smooth, controlled... Read more
€360,99 €327,99
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| Type | Single acting (power up / gravity down) |
|---|---|
| Voltage | DC 12V |
| Motor power | 1.6 kW |
| Flow rate | 0.91 GPM (3.4 L/min) |
| Working pressure | 16–20 MPa |
| Max relief pressure | 22 MPa (approx. 3200 psi) |
| Motor speed | 2600 r/min |
| Reservoir capacity | 6 qt (1.5 gal) |
| Ports/fittings | SAE #6 |
| Product size | 21.7 x 7.5 x 7.9 in (550 x 190 x 200 mm) |
| Net weight | 25.2 lb (11.45 kg) |
