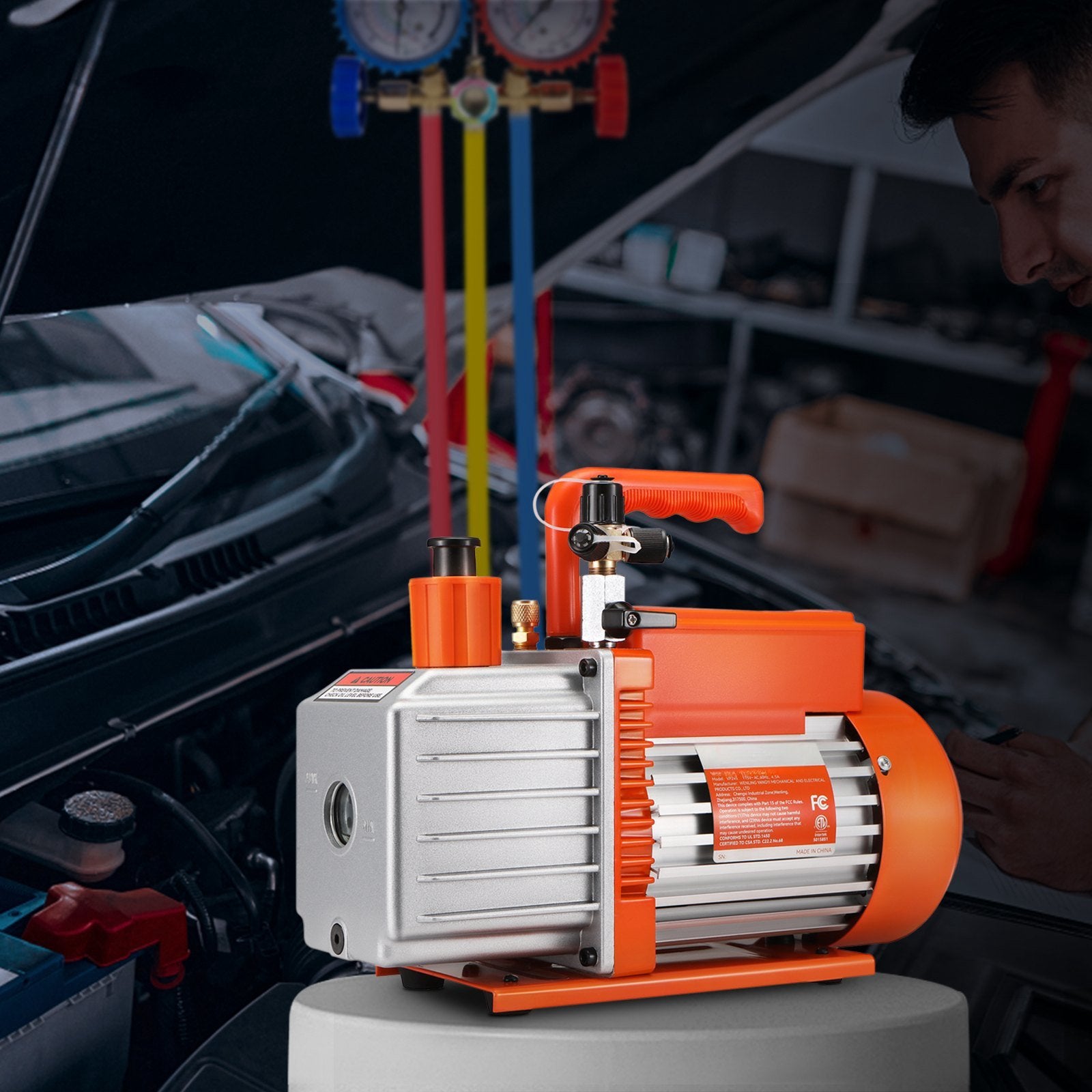

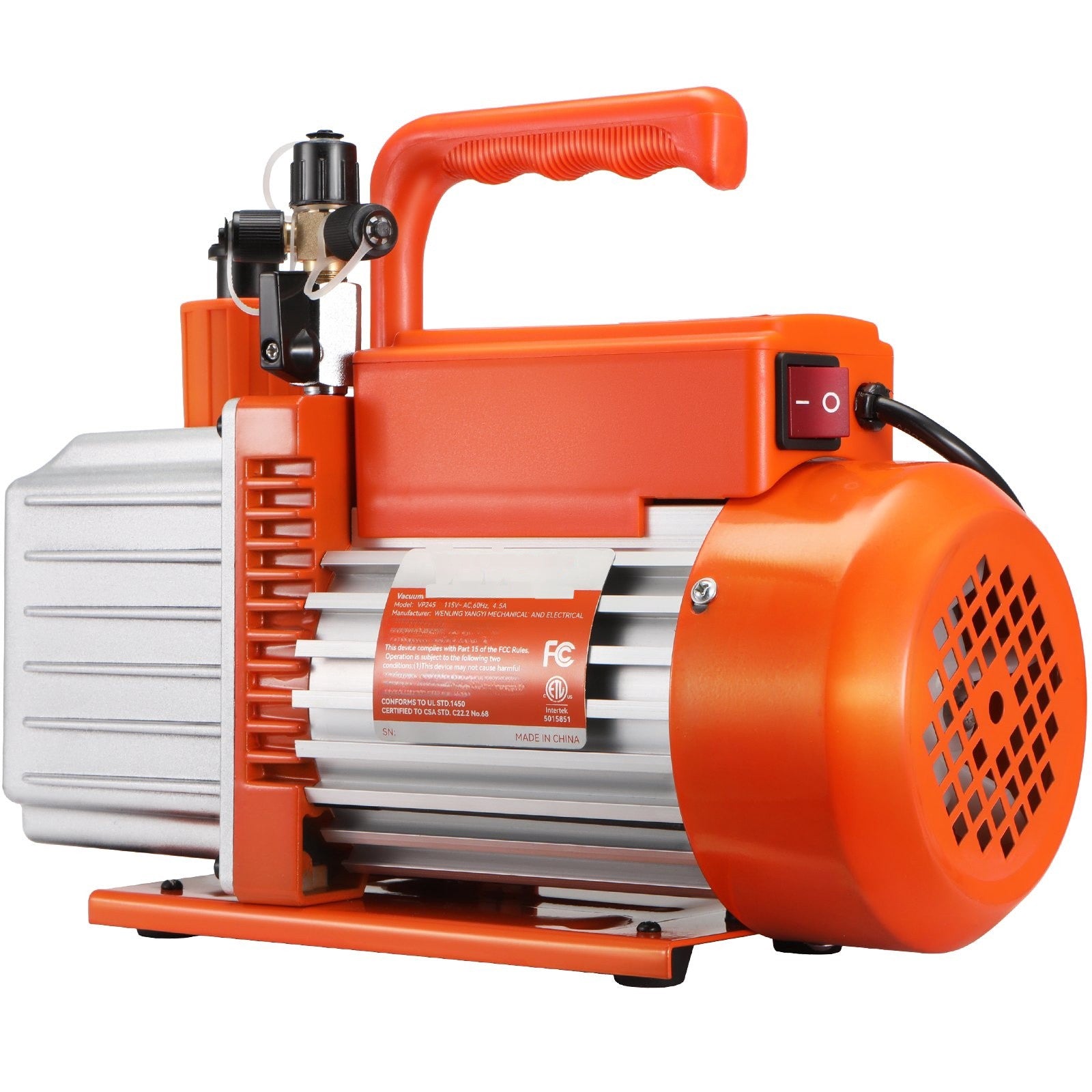

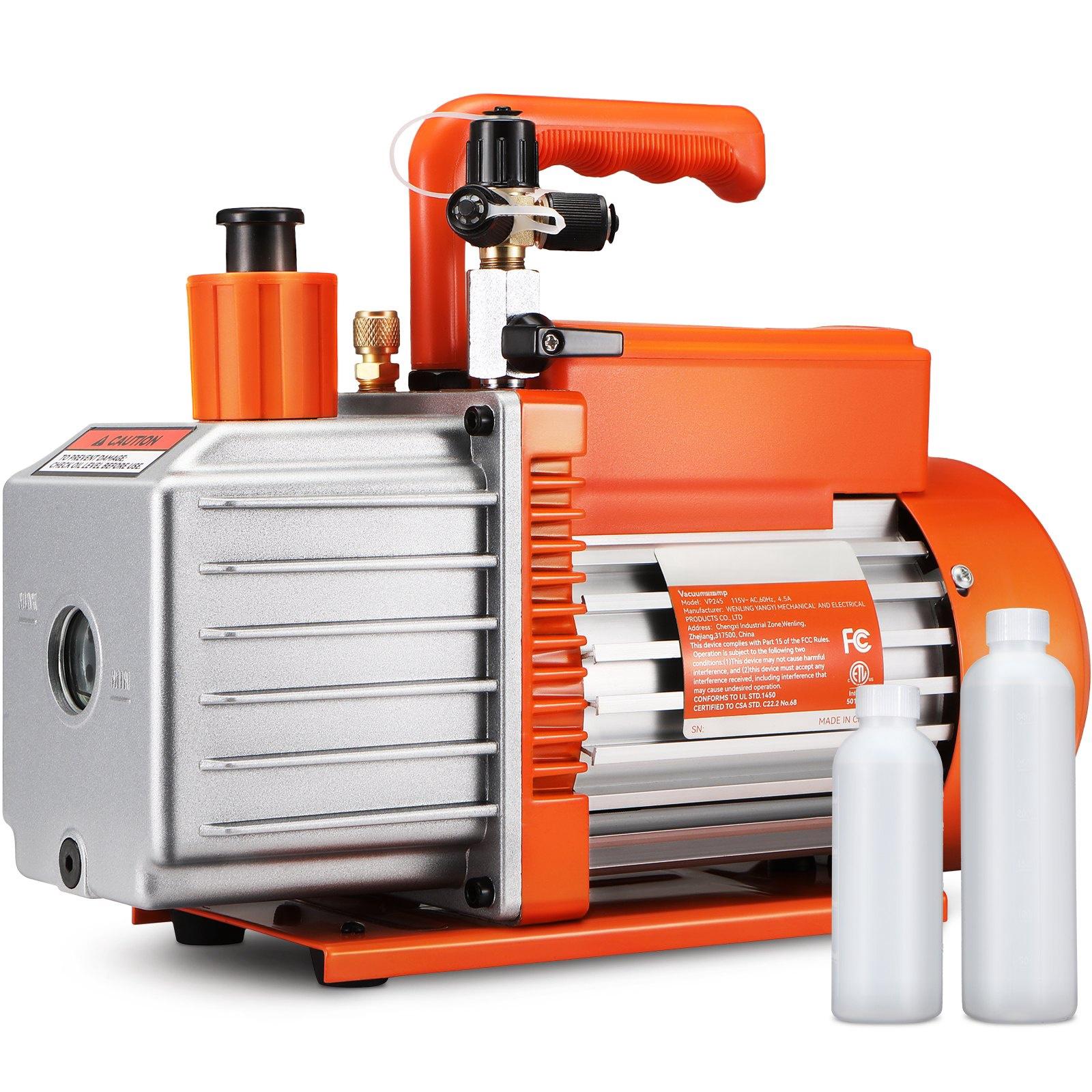

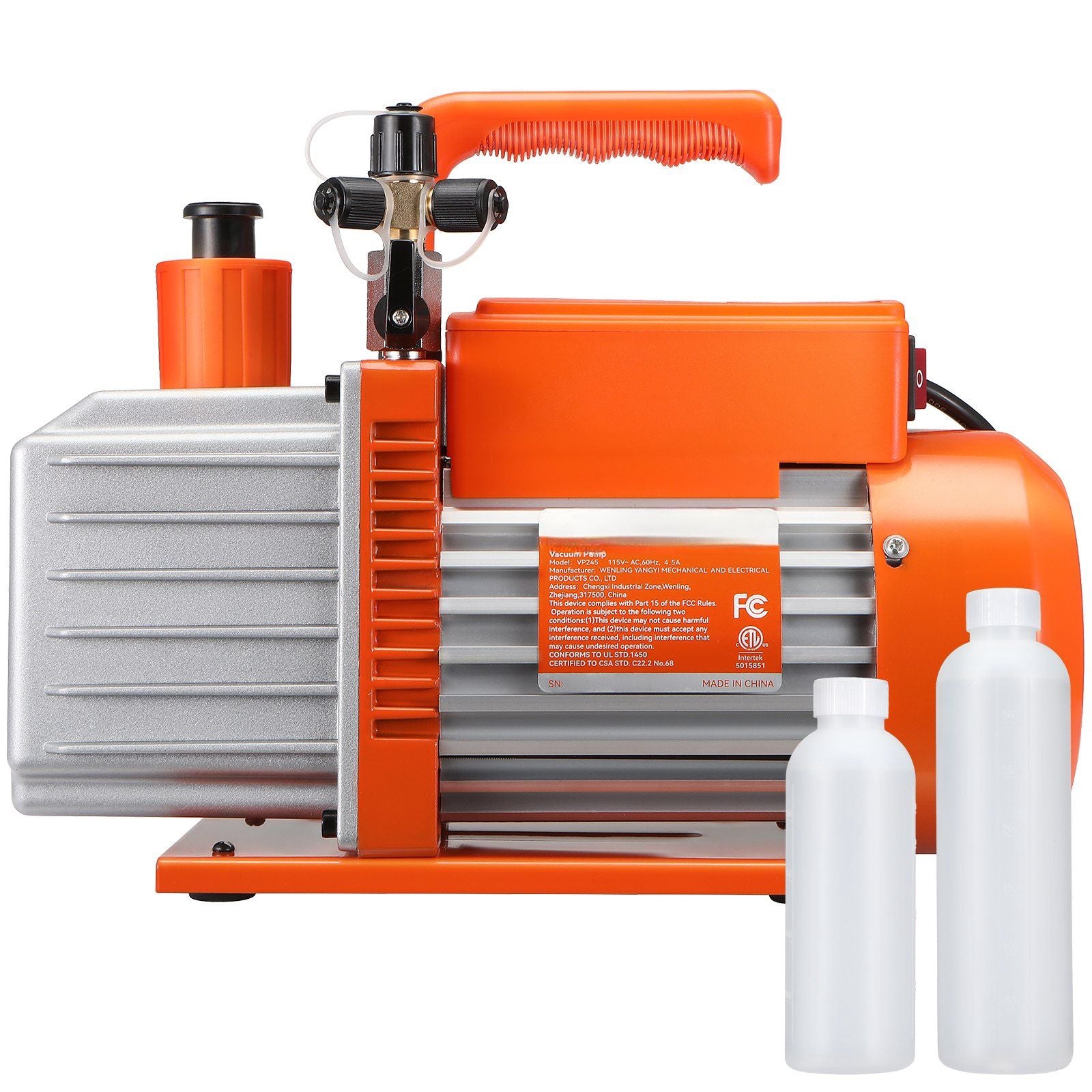

2-Stage HVAC Vacuum Pump, 5 CFM, 230V Rotary Vane

2-Stage HVAC Vacuum Pump, 5 CFM, 230V Rotary Vane

Product form
Item number: 11369513288007

5 CFM 2 stage vacuum pump delivers fast, deep evacuation for HVAC service, refrigeration maintenance, and workshop degassing. The rotary... Read more

Currently unavailable

€304,99  €276,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Free air displacement5 CFM (142 L/min)
    Ultimate vacuum2.5 Pa / 25 microns / 0.003 mbar
    Motor power375 W (1/2 HP)
    Voltage/FrequencyAC 230 V, 50 Hz
    Oil capacity330 ml
    Intake fittings1/4" SAE male, 3/8" SAE male, 1/2" ACME male
    Dimensions (W x D x H)12.7 x 4.8 x 9.7 in (323 x 123 x 245 mm)
    Net weight20.5 lb (9.3 kg)

    Description

    5 CFM 2 stage vacuum pump delivers fast, deep evacuation for HVAC service, refrigeration maintenance, and workshop degassing. The rotary vane design pairs a high-torque copper motor with efficient cooling to support longer run times and stable performance. Built-in sight glass and oil level scale simplify upkeep, while the anti-backflow inlet helps protect your system from oil migration during shutdown. Multiple intake fittings expand compatibility across common service hoses and refrigerant setups, including R1234yf.

    Set up once and move from job to job with a compact footprint and multi-port intake for common SAE/ACME connections. Whether you’re pulling vacuum on air conditioning systems, servicing refrigeration, stabilizing wood, or degassing resin, this pump is built for clean operation and straightforward maintenance. Keep an eye on oil condition at a glance, top up quickly, and focus on the work instead of troubleshooting performance drops. Grab yours today and streamline your evacuation workflow.

    Specifications
    • Delivers 5 CFM airflow and 25-micron ultimate vacuum for quicker pull-down and reliable evacuation
    • Reduces downtime with 2-stage design, T-shaped heat sink, cooling fan, and overheat protection
    • Prevents oil backflow using a check valve and ball valve switch to help protect lines and equipment
    • Includes a discharge filter element to help cut oil fume output and reduce operating noise

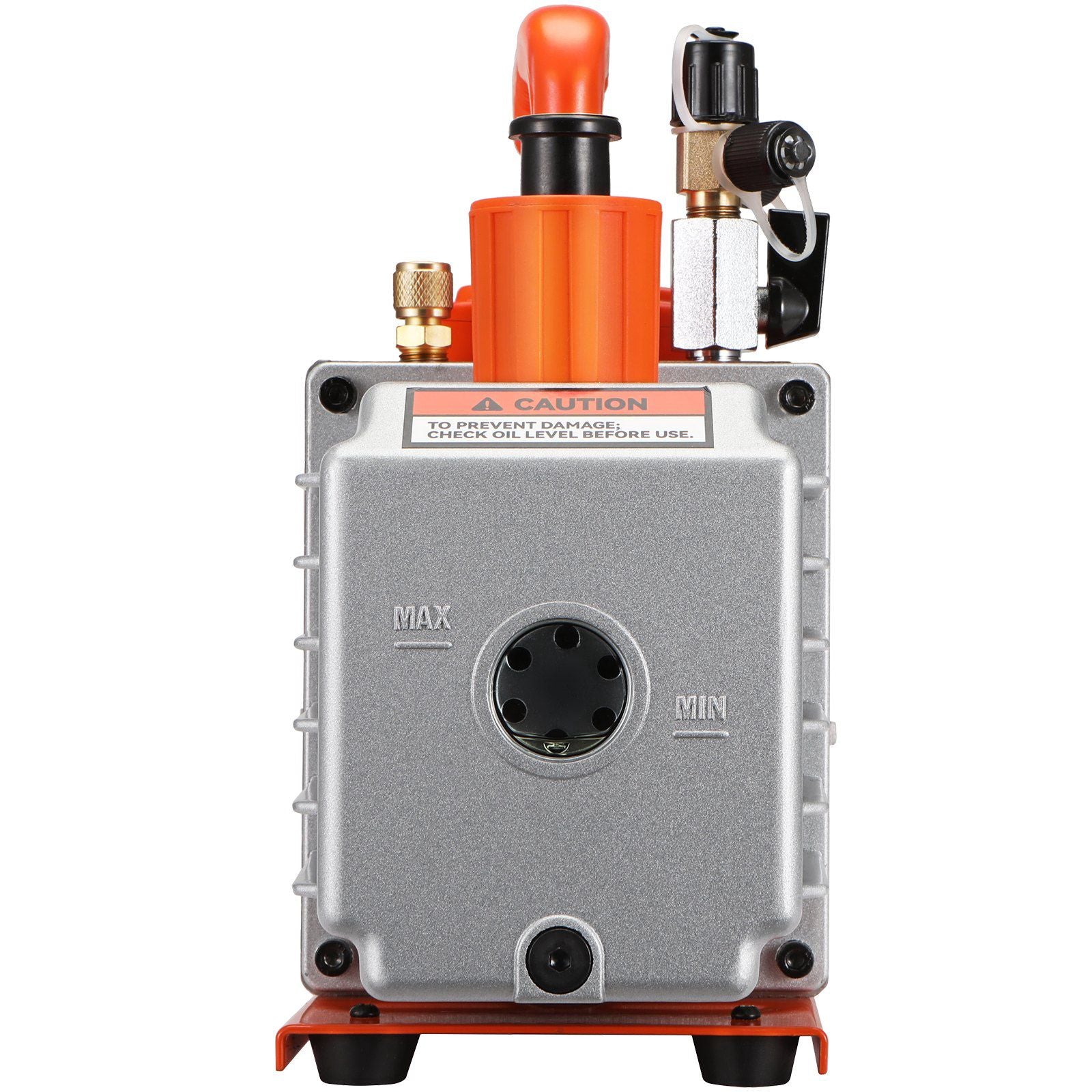

    • Improves handling with ergonomic rubber-clad handle plus sight glass and oil level scale for easy checks
