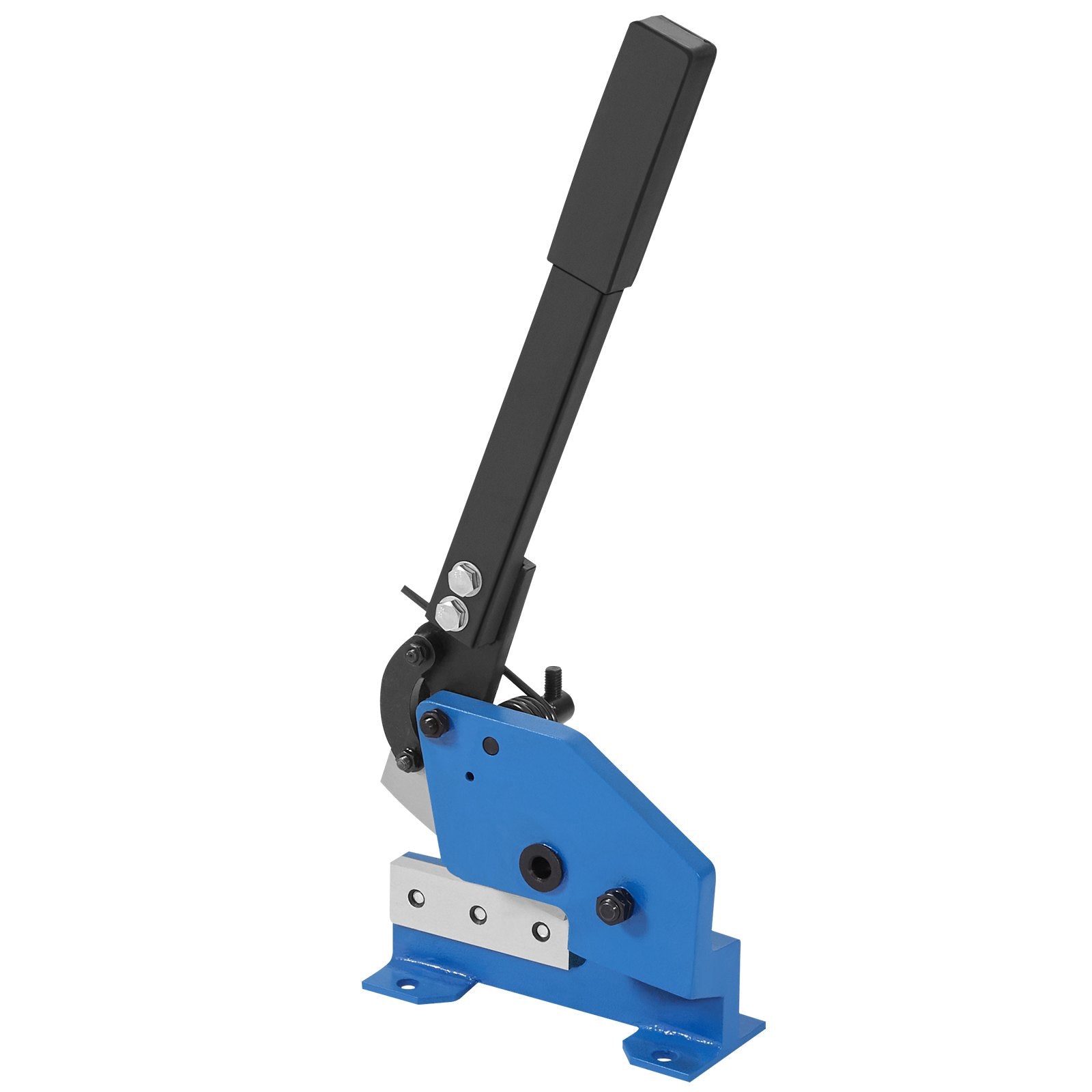

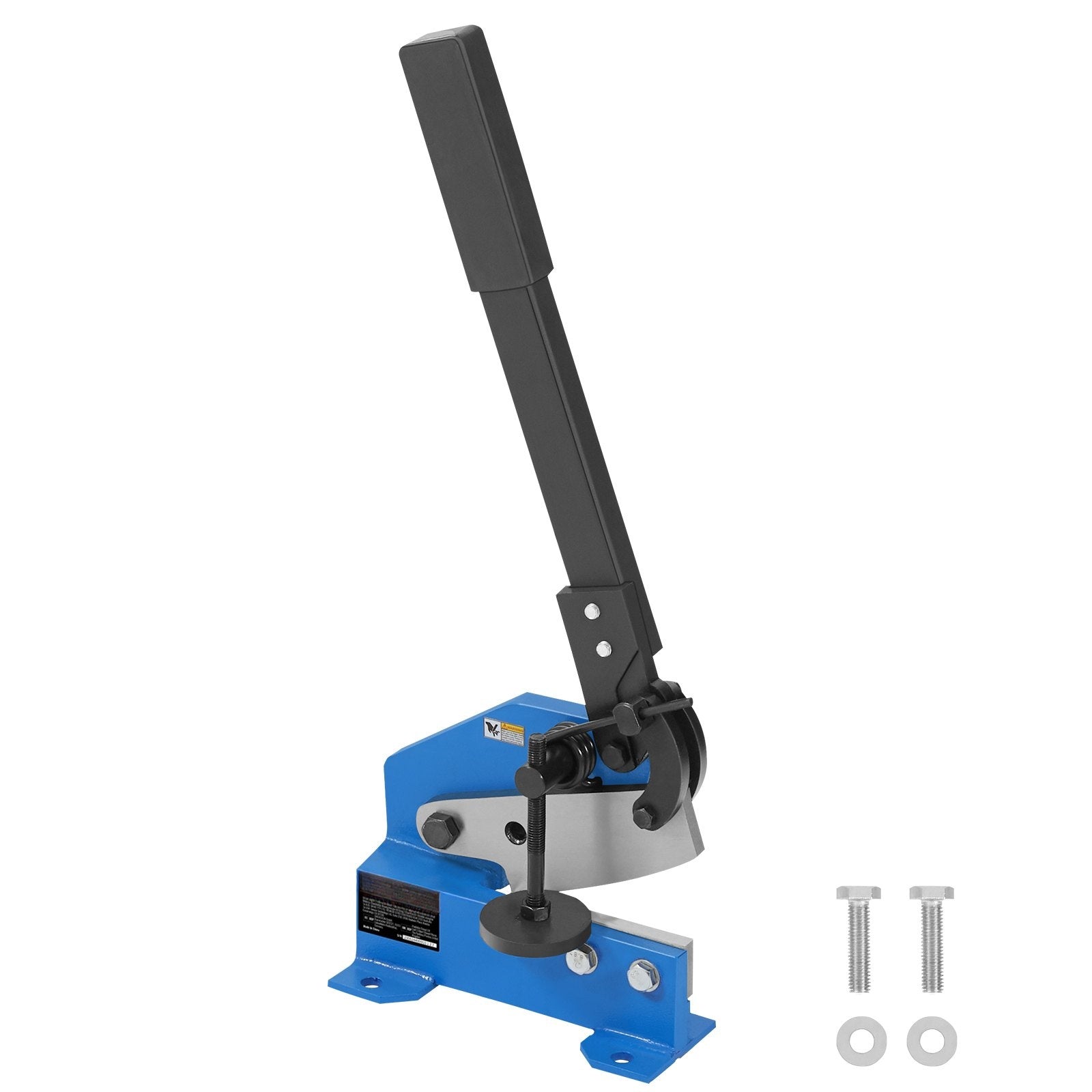

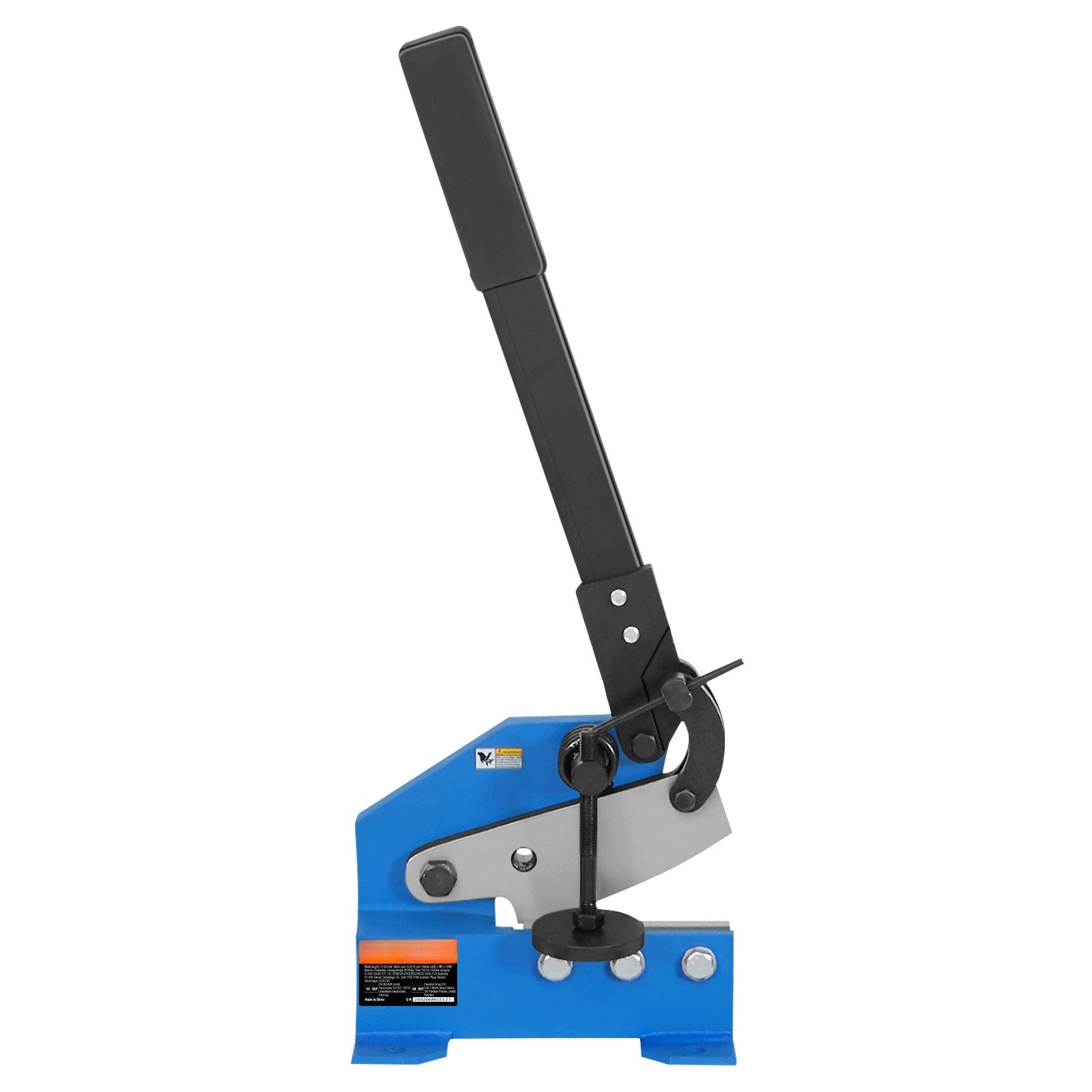

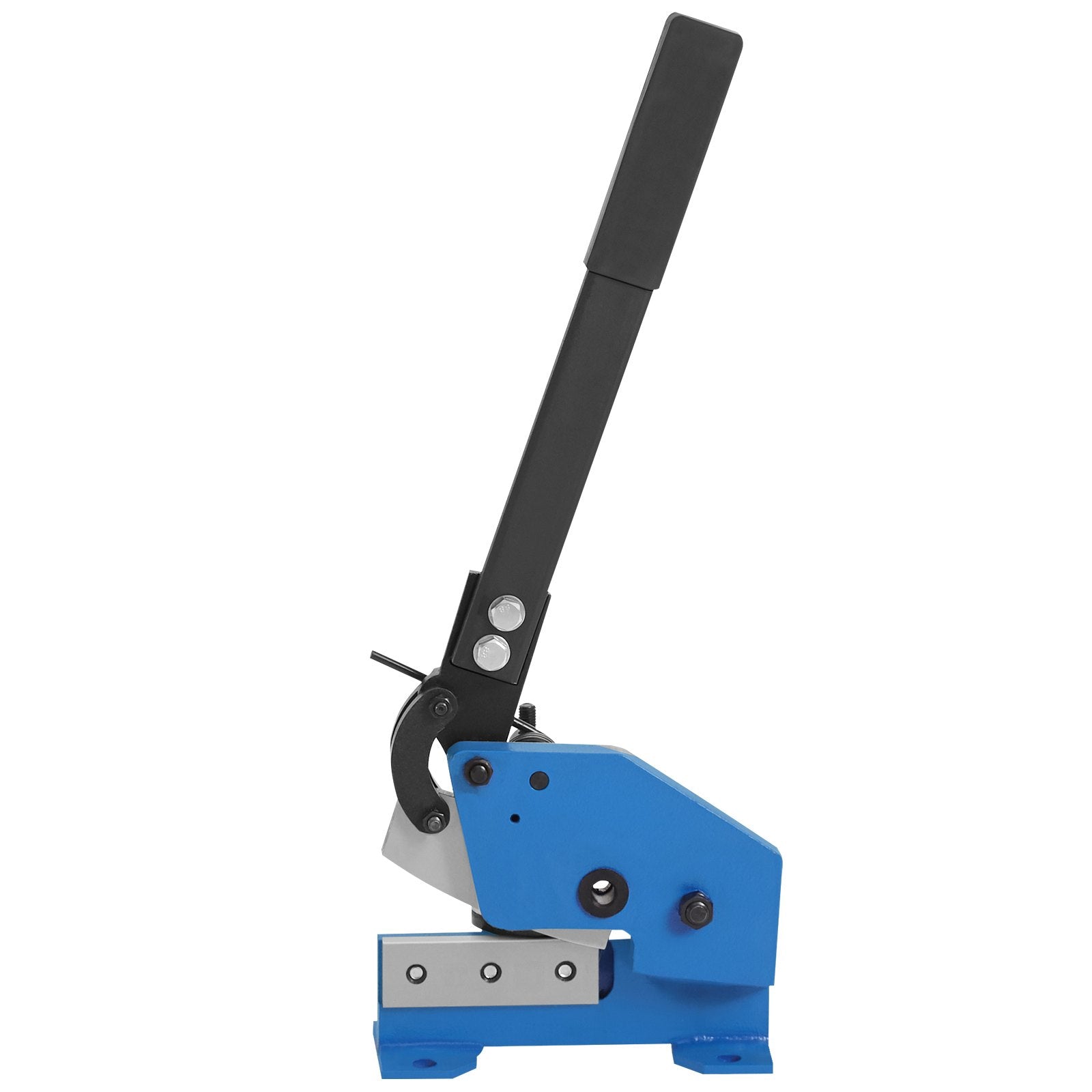

Manual Benchtop Plate Shear, 110 mm Cut, 6 mm Thick
Manual Benchtop Plate Shear, 110 mm Cut, 6 mm Thick

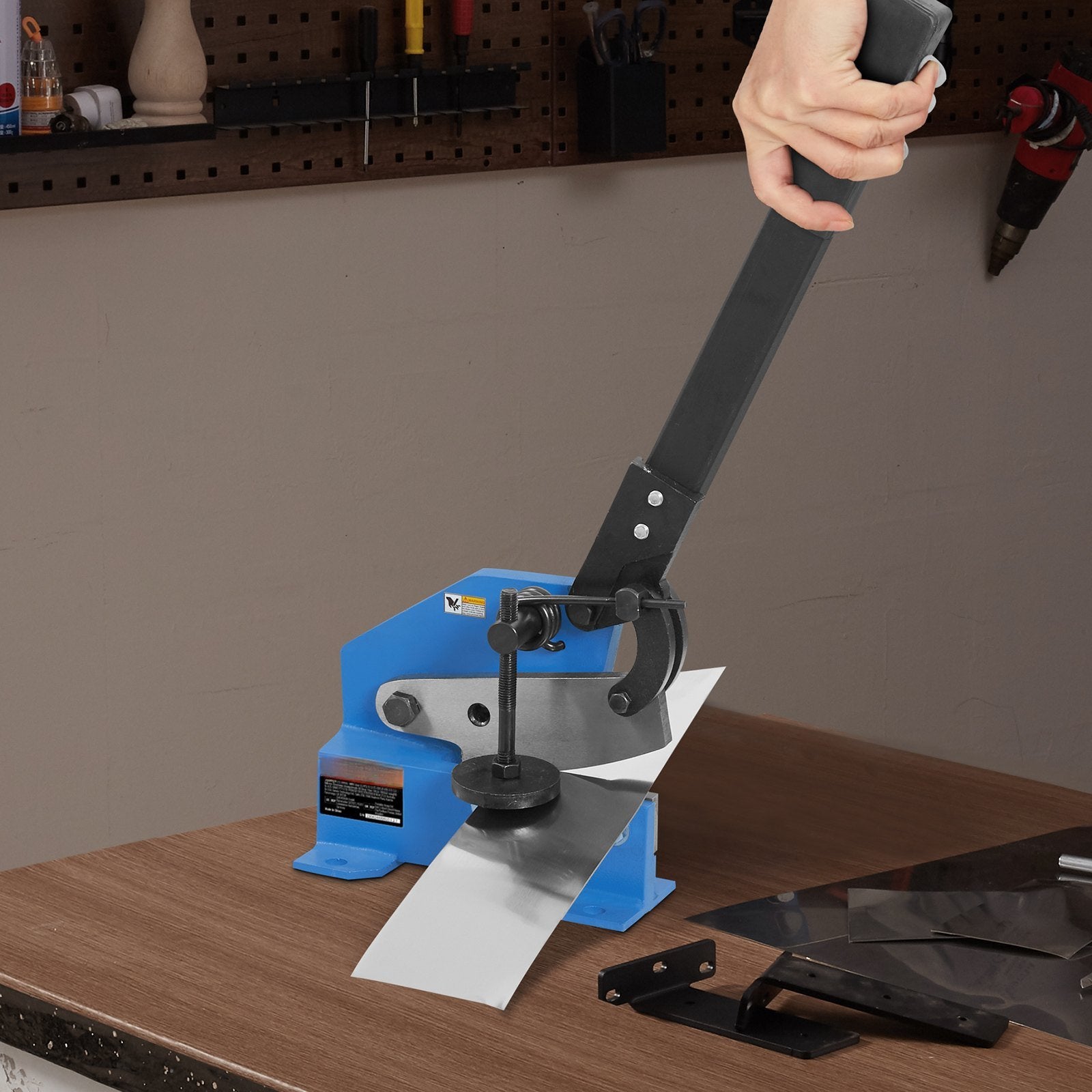

Manual bench shear delivers clean, controlled cuts on sheet metal and small bar stock while reducing hand fatigue with a... Read more
€167,99 €151,99
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| Max shearing length | 4.33 in / 110 mm |
|---|---|
| Max plate thickness | 0.24 in / 6 mm |
| Max round steel diameter | 0.43 in / 11 mm |
| Handle length | 15.74 in / 400 mm |
| Main materials | Q235 body, T10 blades |
| Blade hardness | >52 HRC; blade thickness: 0.47 in / 12 mm |
| Blade clearance | <0.07 mm |
| Base thickness | 0.24 in / 6 mm; mounting: tabletop bolt fixation |
| Finish | painted/blackened treatment, blue |
| Product dimensions | 9.4 x 3.9 x 24.8 in / 240 x 100 x 630 mm |
| Product weight | 22.5 lb / 10.2 kg |
