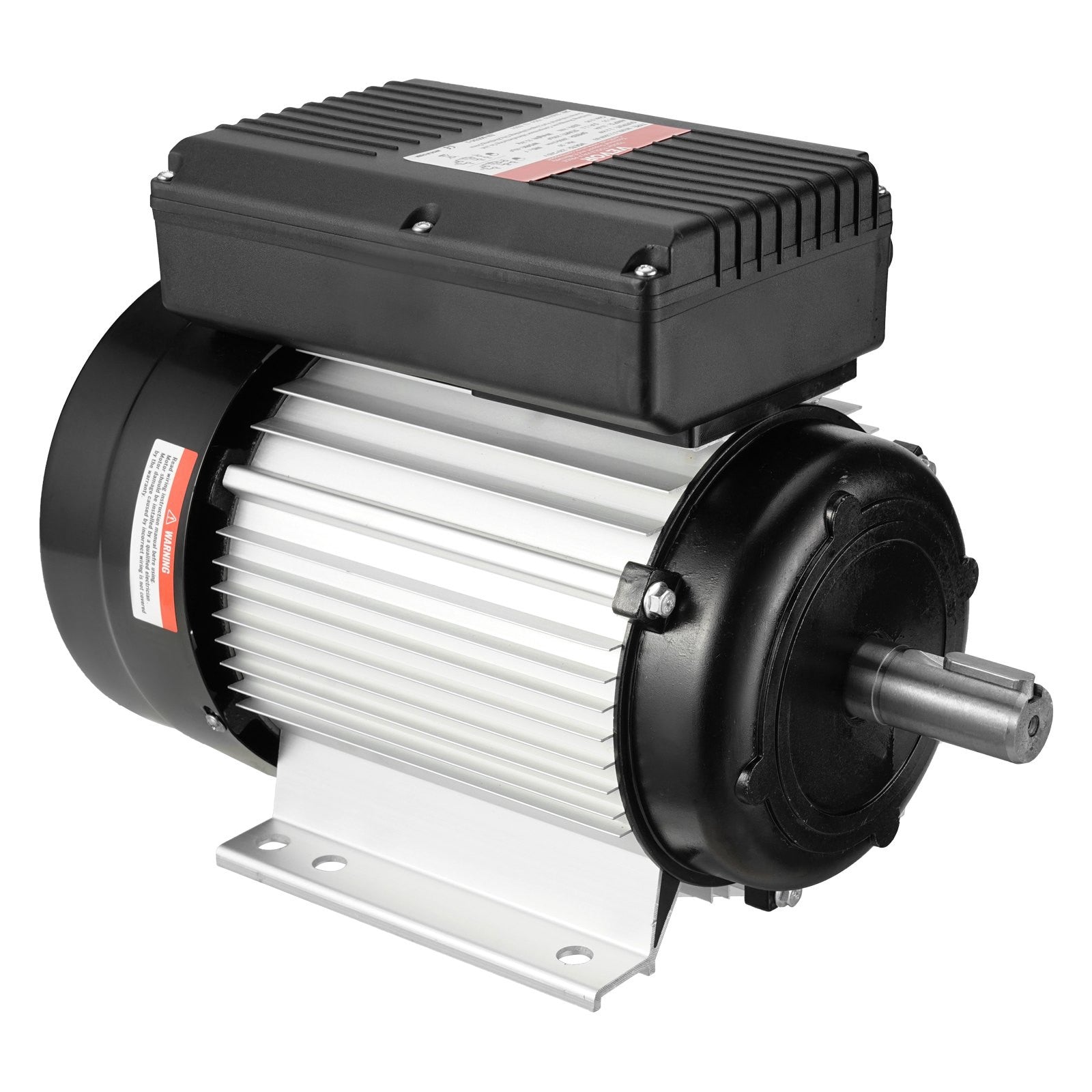

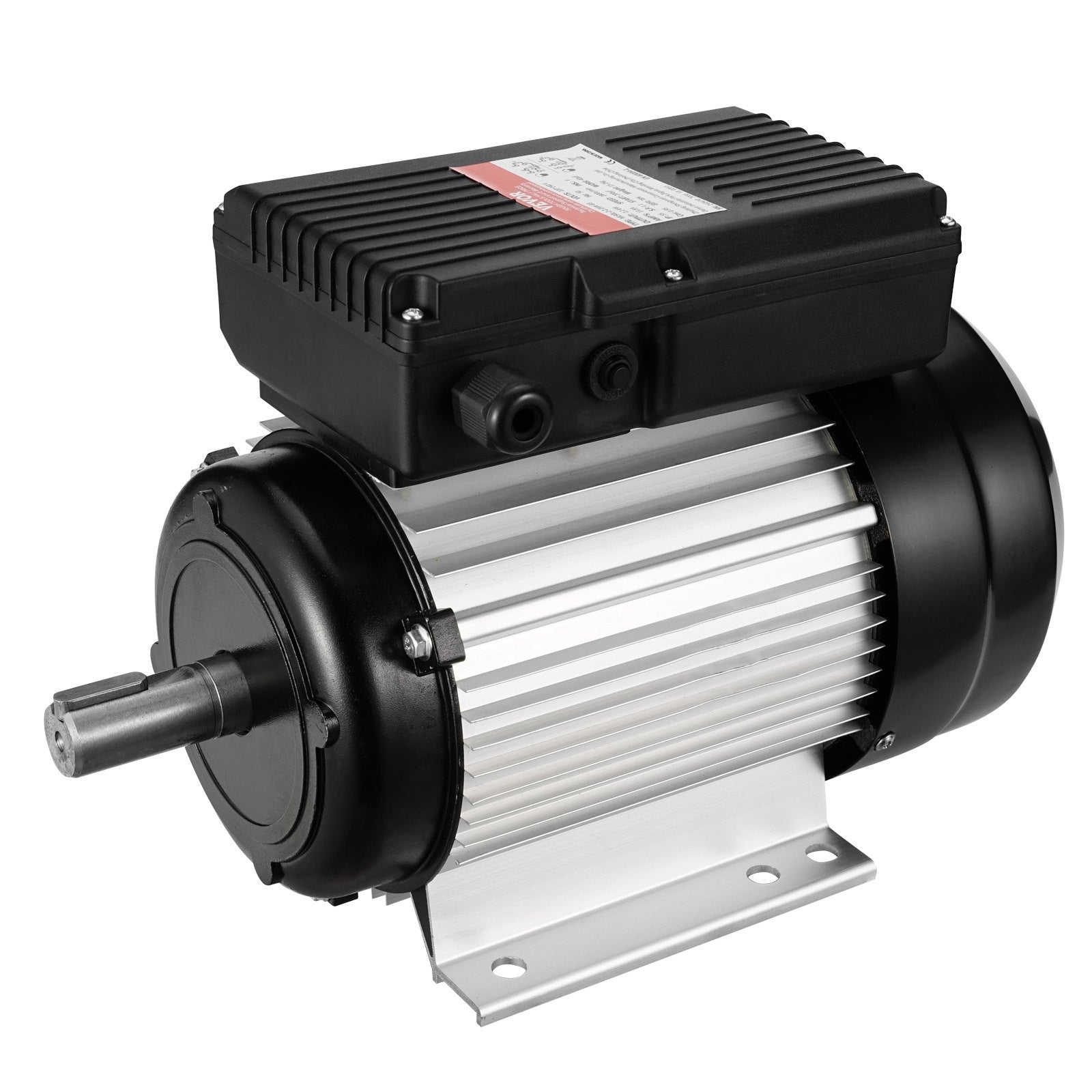

2.2kW Single-Phase Electric Motor, 2800 RPM, 220–240V

2.2kW Single-Phase Electric Motor, 2800 RPM, 220–240V

Fiche produit
Référence de l’article: 11369608806727

2.2kW single phase electric motor delivers high-speed 2800 RPM power for air compressors, pumps, and general machinery. Built for AC... En savoir plus

Actuellement indisponible

€284,99  €258,99

    Paiement sécurisé avec

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Livraison gratuite
    • Retours sous 30 jours
    • Paiement sécurisé

    Caractéristiques

    Power2.2kW / 3HP (Service Factor: 1.1)
    Voltage/FrequencyAC 220–240V, 50Hz
    Current13.8A (full load)

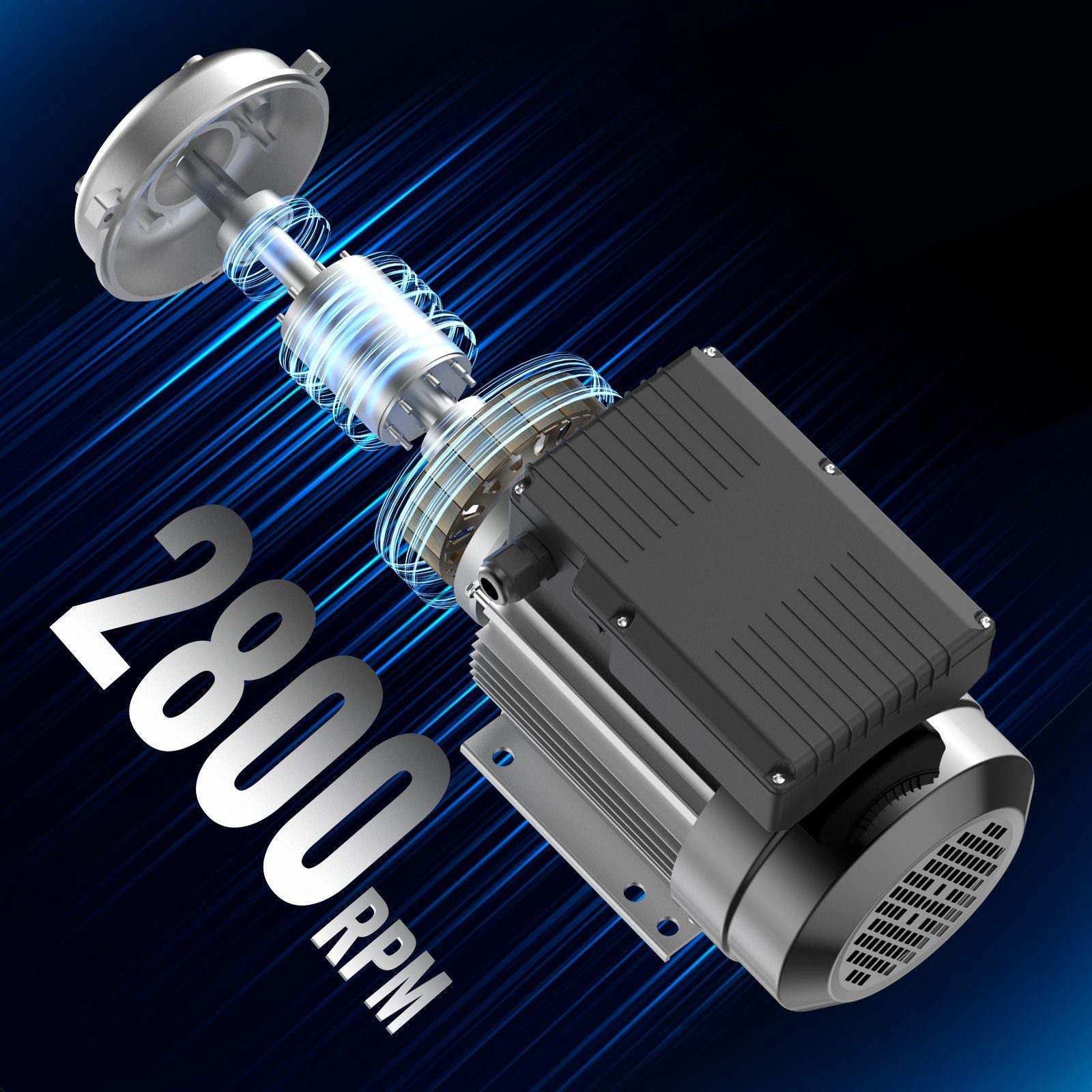

    Speed2800 RPM
    PhaseSingle phase
    Frame90L, B3 foot mount
    Shaft24mm keyed; shaft length 50mm; keyway 8mm
    RotationCW/CCW reversible
    Enclosure ratingIP55
    Dimensions345 x 205 x 215 mm (13.6 x 8.1 x 8.5 in)
    Net weight15.2 kg (33.5 lb)

    Description

    2.2kW single phase electric motor delivers high-speed 2800 RPM power for air compressors, pumps, and general machinery. Built for AC 220–240V systems, it combines a rugged rolled steel housing with a B3 foot-mount frame for stable installation. Reversible CW/CCW rotation simplifies wiring and setup across different equipment layouts. Ideal for repairs, replacements, and DIY builds where consistent torque and dependable operation matter.

    Designed as a general-purpose AC motor for agricultural machinery and workshop equipment, this unit prioritizes practical durability and easy serviceability. The heavy-duty rolled steel shell helps resist corrosion in tough environments, while the keyed shaft and standard frame sizing streamline replacement installs. Whether you’re restoring a compressor, upgrading a water pump drive, or building custom equipment, this motor delivers the power and flexibility to keep your project moving. Grab yours today and get your machine back to work.

    Specifications
    • Delivers 2.2kW (3HP) output at 2800 RPM for demanding compressor and pump duties
    • Supports AC 220–240V, 50Hz single-phase power with 13.8A full-load current
    • Enables reversible CW/CCW rotation to match your machine’s direction requirements
    • Fits B3 foot-mount applications with 90L frame for stable, straightforward mounting
    • Includes 24mm keyed shaft for secure coupling to pulleys, hubs, and drive components
