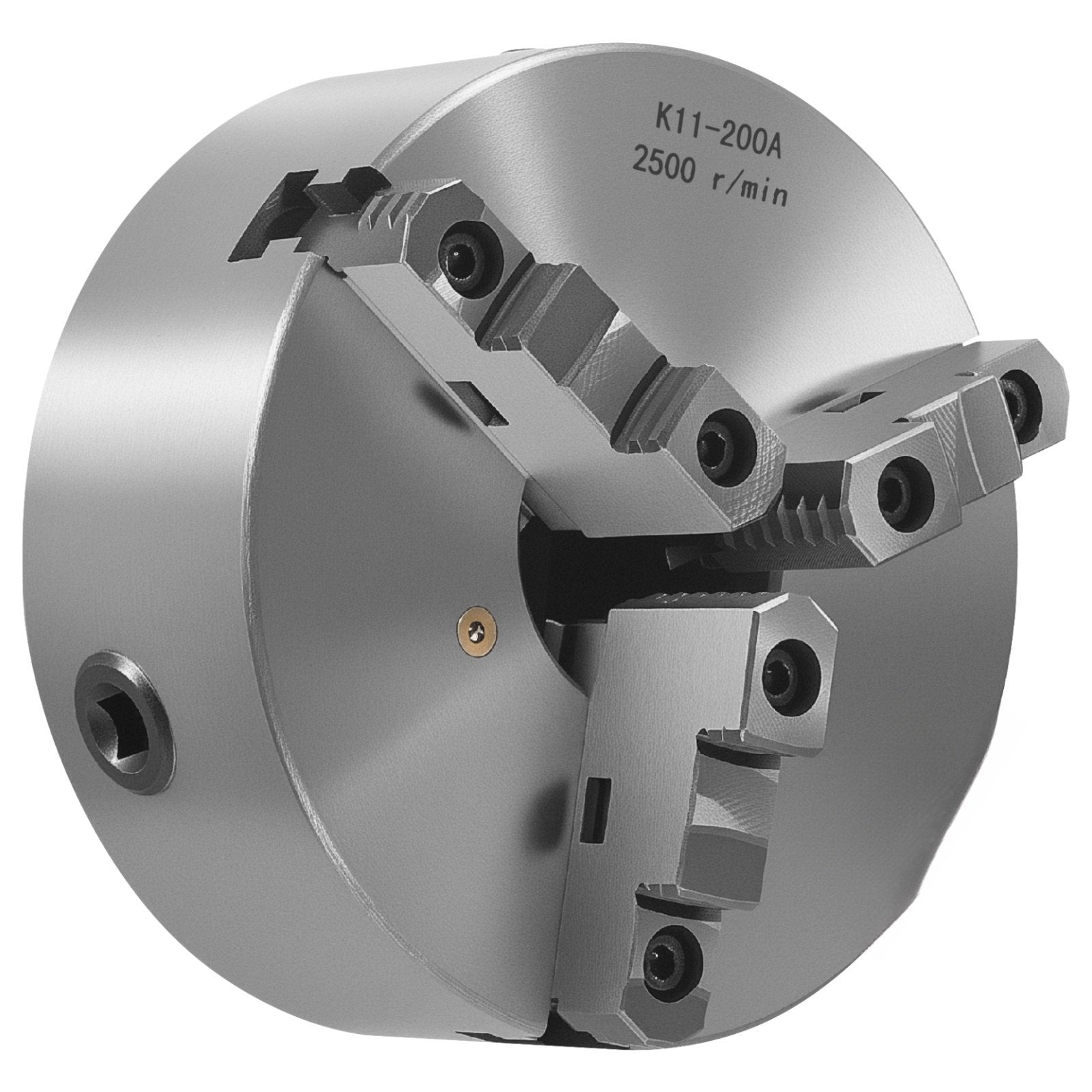

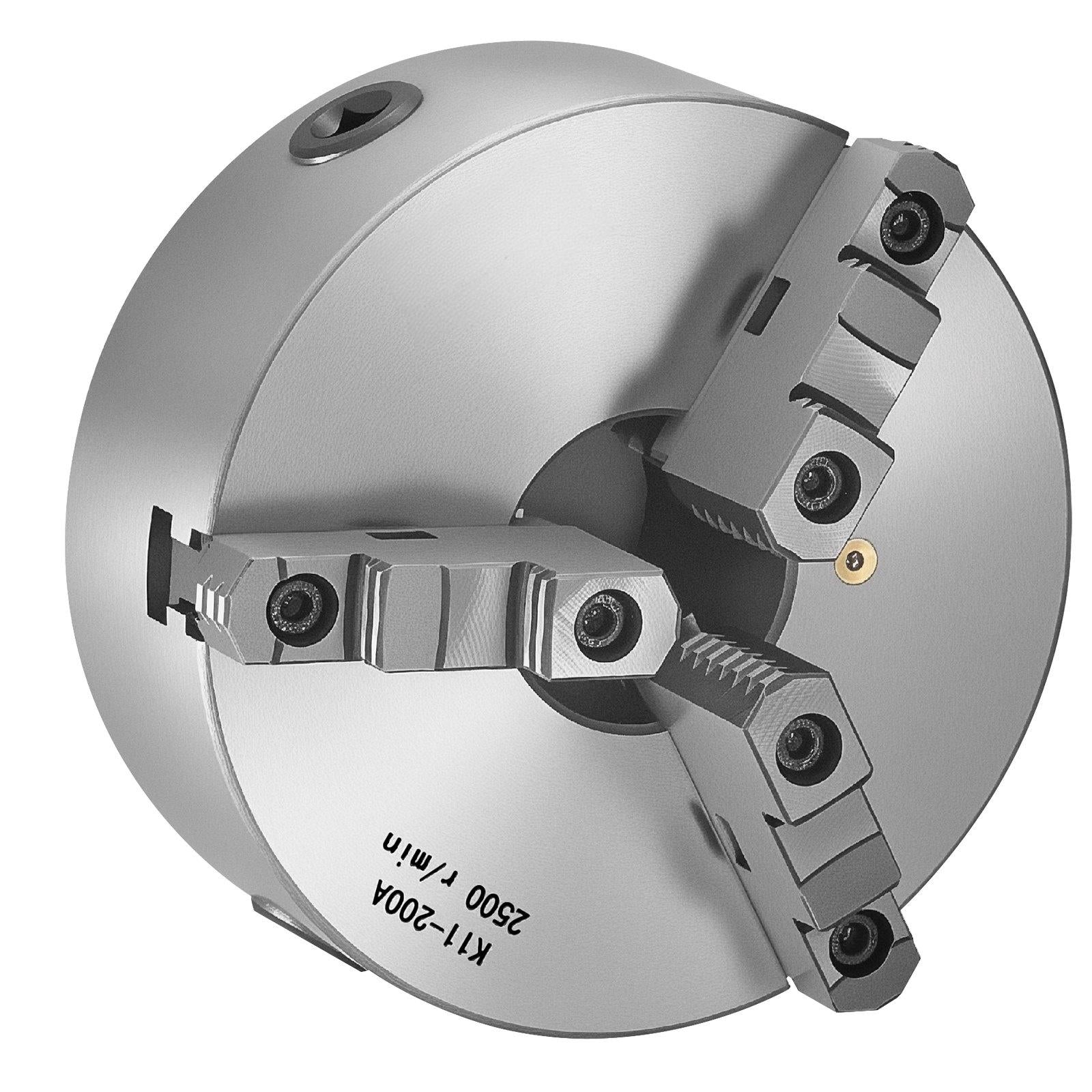

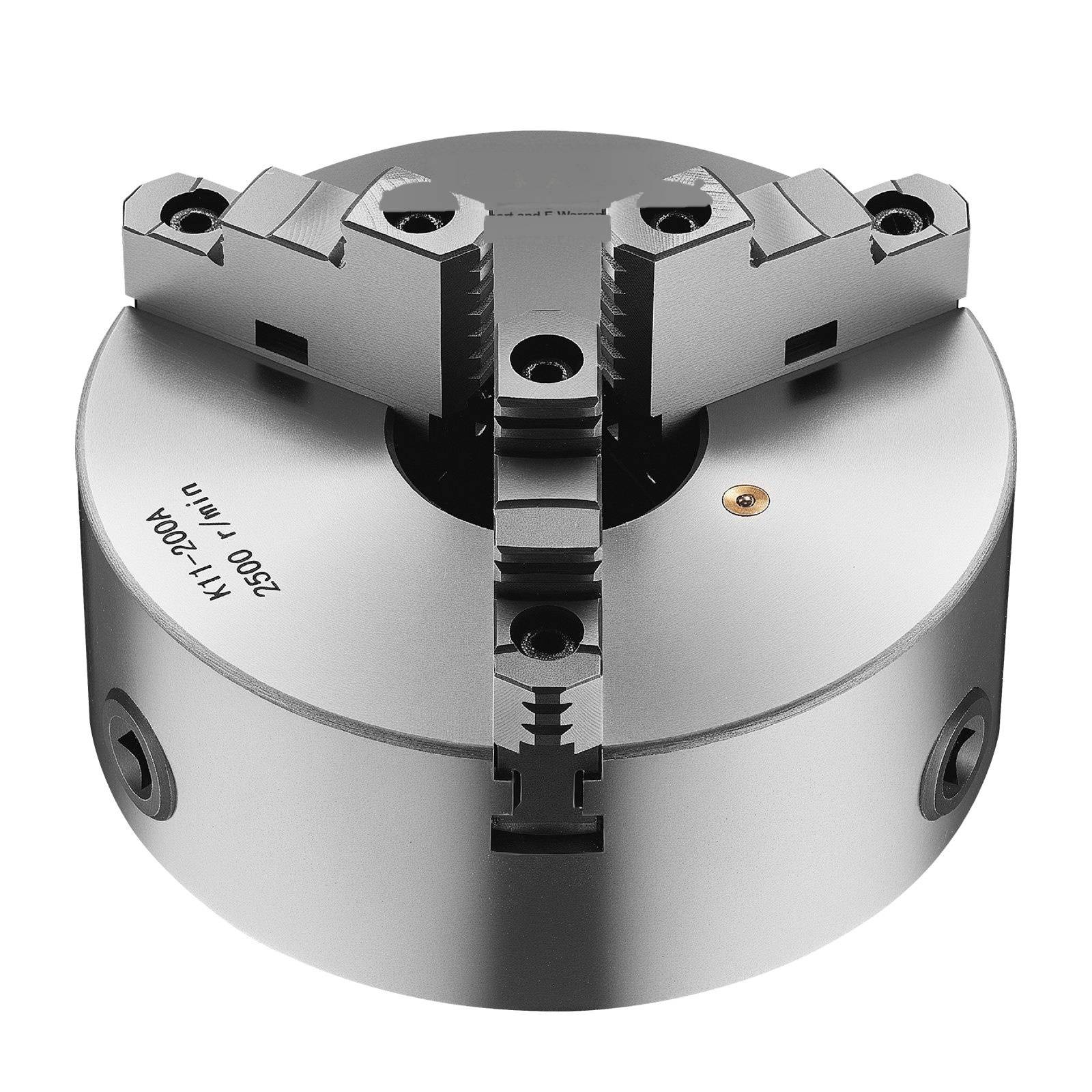

3-Jaw Lathe Chuck 8 in, Self-Centering, 2-1/4-8

3-Jaw Lathe Chuck 8 in, Self-Centering, 2-1/4-8

Fiche produit
Référence de l’article: 11370505142599

3-jaw self-centering lathe chuck delivers fast, accurate workholding to reduce setup time and keep parts running true. This 8 in... En savoir plus

Actuellement indisponible

€293,99  €266,99

    Paiement sécurisé avec

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Livraison gratuite
    • Retours sous 30 jours
    • Paiement sécurisé

    Caractéristiques

    Chuck type3-jaw self-centering scroll chuck with backing plate
    Outer diameter8 in / 200 mm
    Inner diameter2.56 in / 65 mm
    Thread2-1/4 in-8
    Internal jaw clamping range0.16–7.87 in / 4–200 mm
    External jaw clamping range2.56–7.87 in / 65–200 mm
    Overall sizeφ200 × 125 mm (7.87 × 4.92 in)
    MaterialHT300 cast iron
    Hardnessjaws ≥53 HRC; scroll plate ≥45 HRC
    Net weight35.38 lb / 16.05 kg

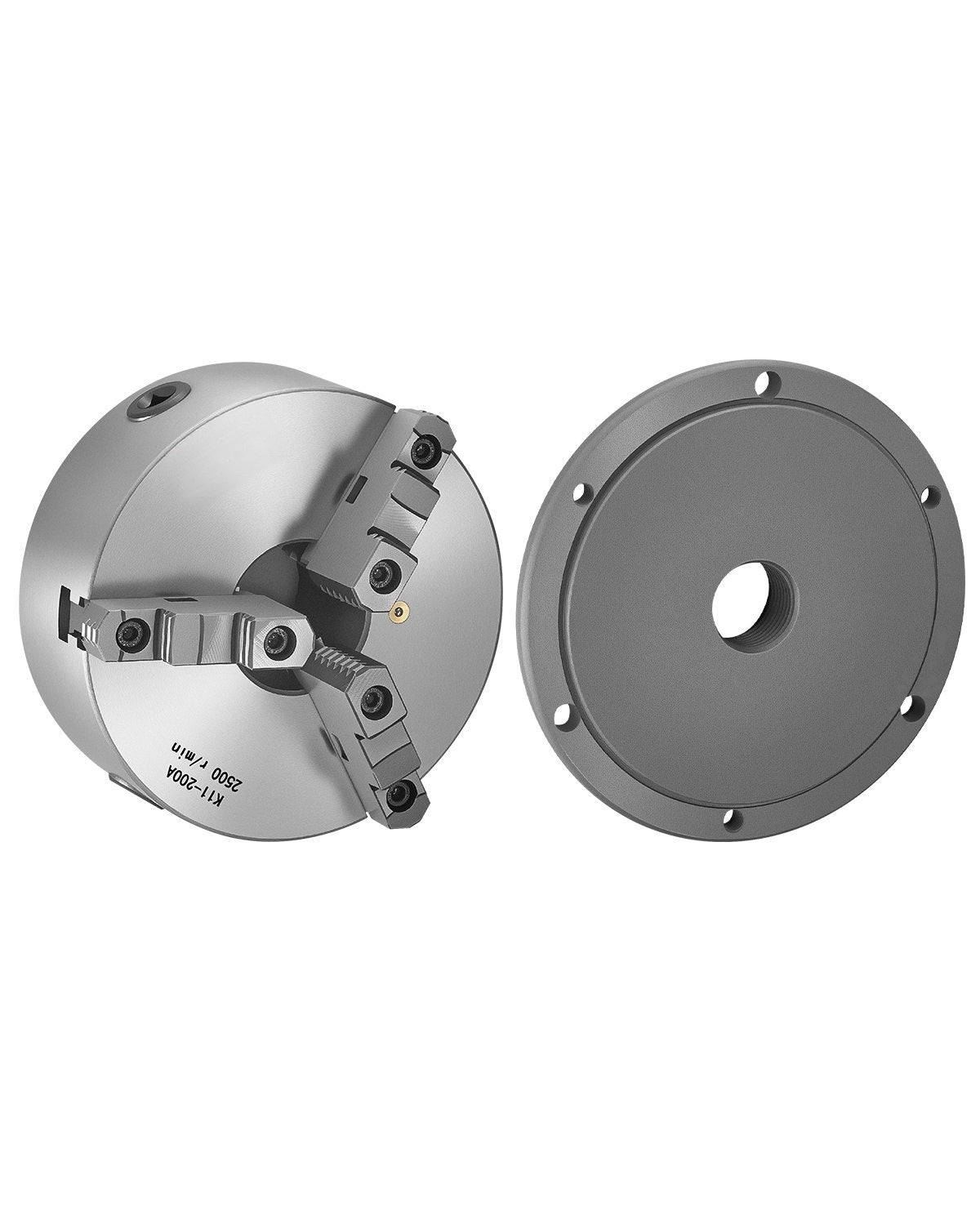

    In the boxchuck, backing plate, separate jaws, T-wrench, screws

    Description

    3-jaw self-centering lathe chuck delivers fast, accurate workholding to reduce setup time and keep parts running true. This 8 in (200 mm) chuck includes a 2-1/4 in-8 threaded backing plate for a secure, stable connection on compatible lathes. Built from HT300 cast iron with hardened jaws and scroll plate, it’s designed for consistent clamping across a wide 0.16–7.87 in (4–200 mm) range for wood or metal turning tasks.

    Designed for turning, drilling, and general shop work, this 8-inch scroll chuck supports repeatable results on compatible lathes without fussy setup. The HT300 cast iron body is built for durability, while hardened jaws help maintain grip under load for cleaner cuts and fewer slips. Keep it in your shop for quick changeovers between diameters and materials, from wood blanks to metal stock. Grab yours today and upgrade your lathe’s holding power and day-to-day efficiency.

    Specifications
    • Delivers self-centering clamping to cut down on repeated calibration and keep work aligned
    • Includes 2-1/4 in-8 threaded backing plate for quick mounting and stable machine connection
    • Clamps internal jaws from 0.16–7.87 in (4–200 mm) for broad workpiece coverage
    • Secures external jaw work from 2.56–7.87 in (65–200 mm) for larger stock handling
    • Installs easily with included T-wrench and straightforward jaw adjustment sequence
