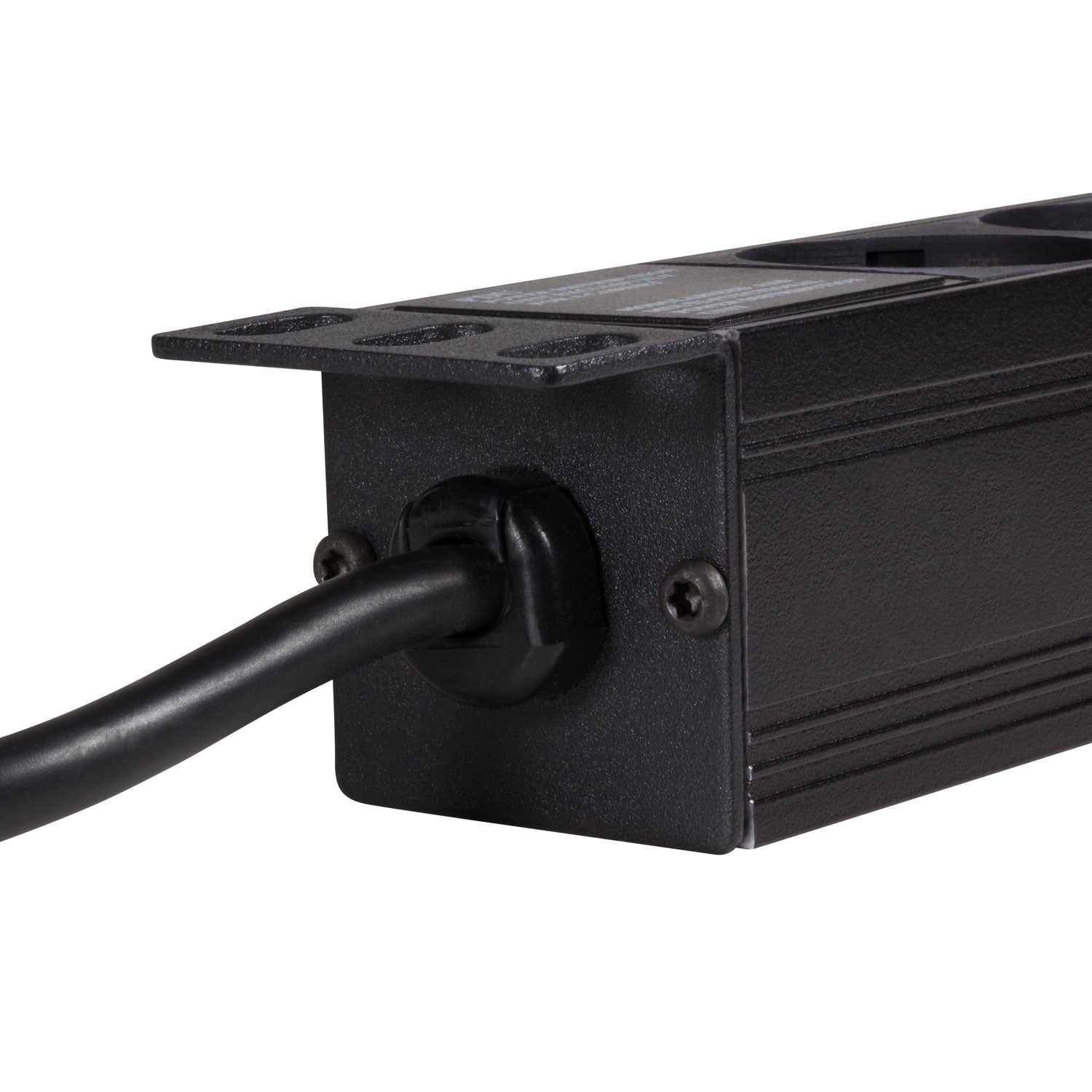

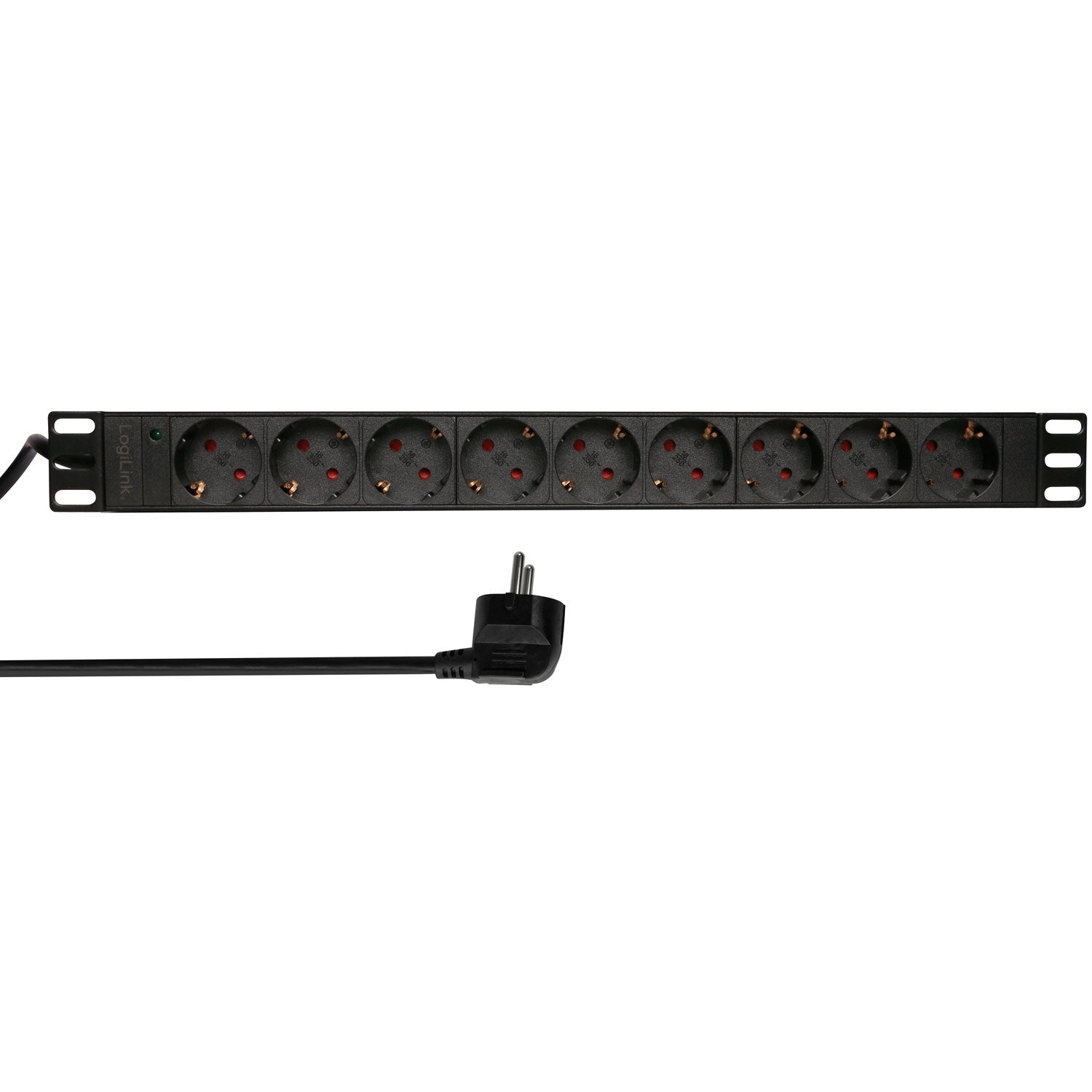

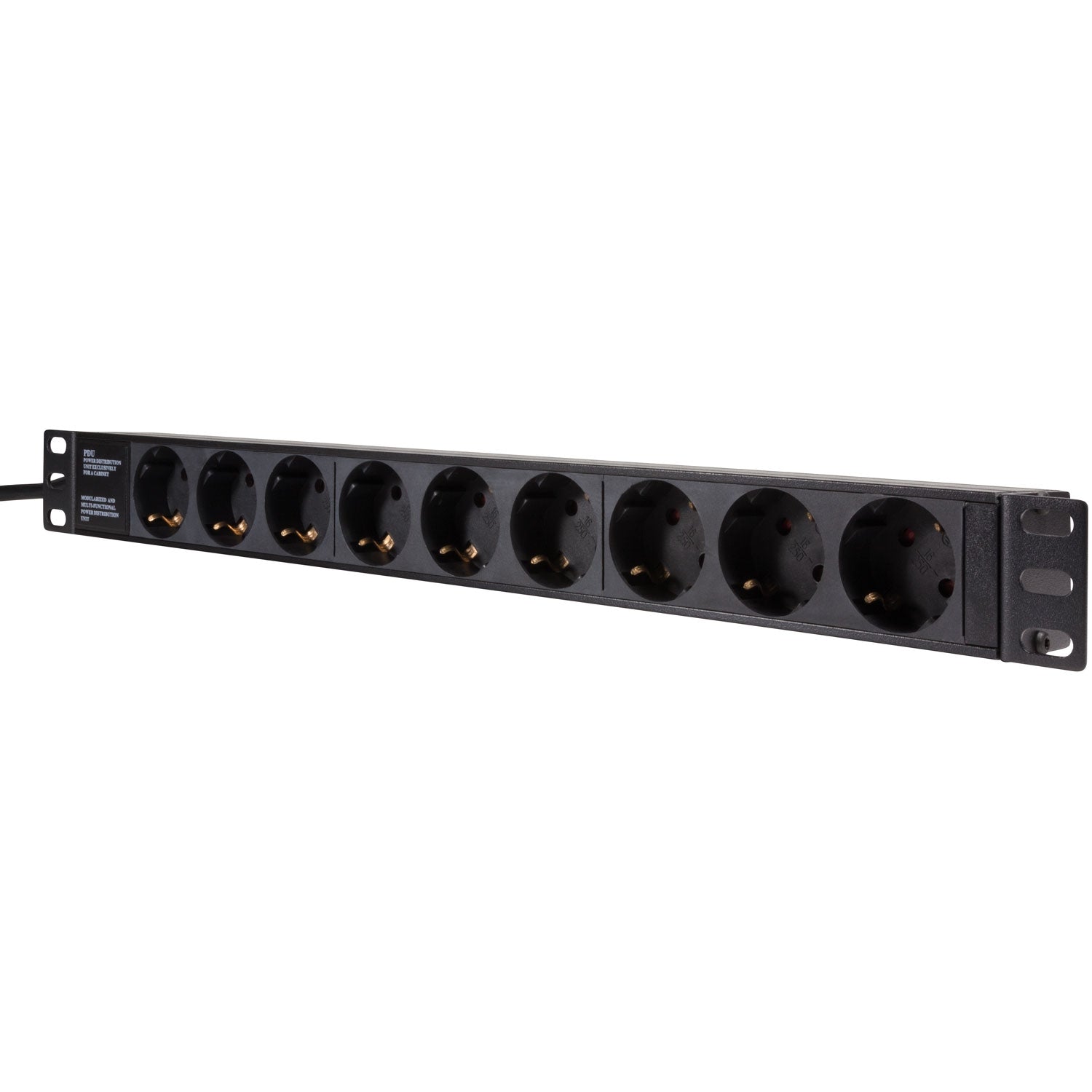

LogiLink 19" PDU 9-way LogiLink's 19" branch outlet. Suitable for horizontal 19" rack mounting, but can also be used as a stand-alone power outlet. The cost-effective PDUs are supplied with 2 m connection cable.

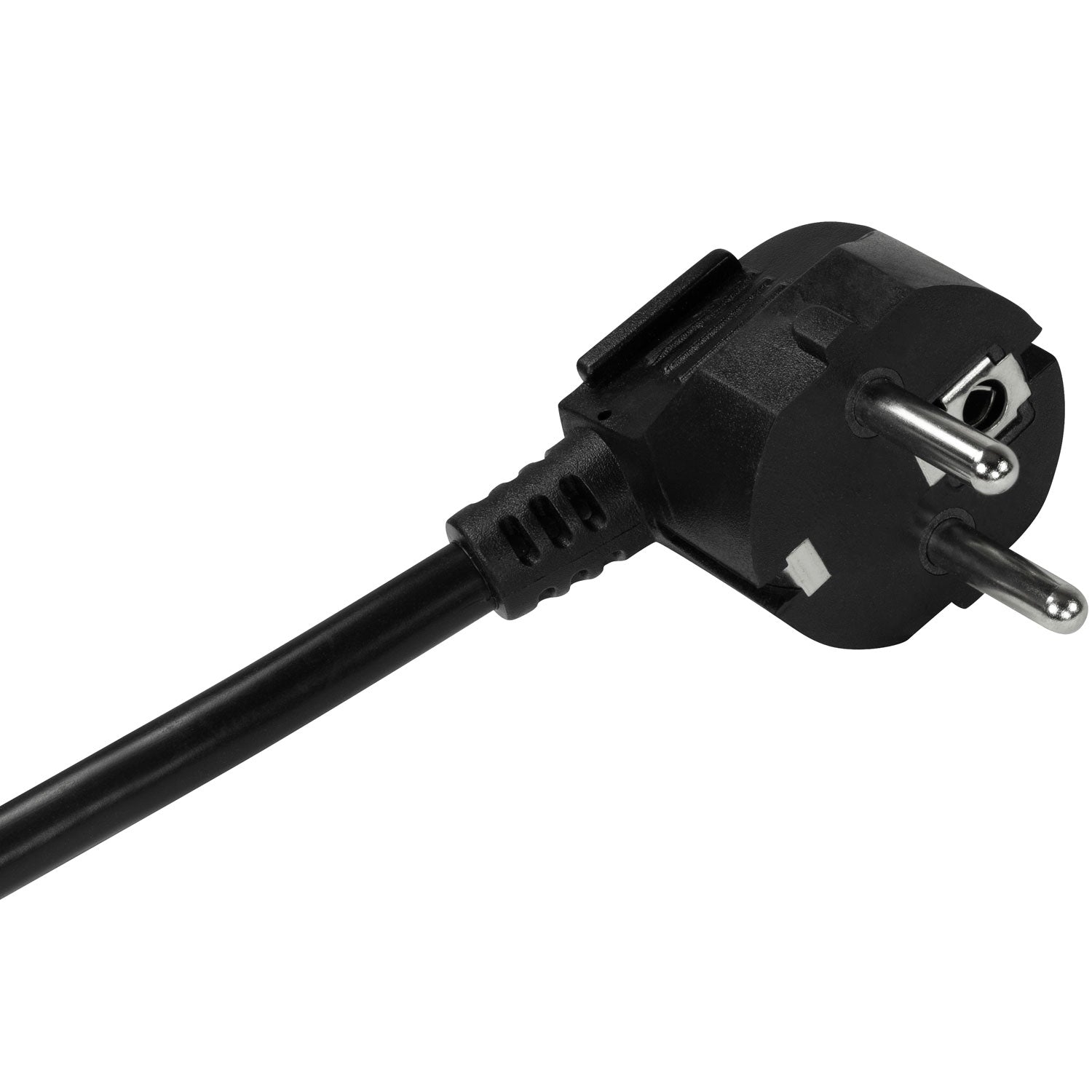

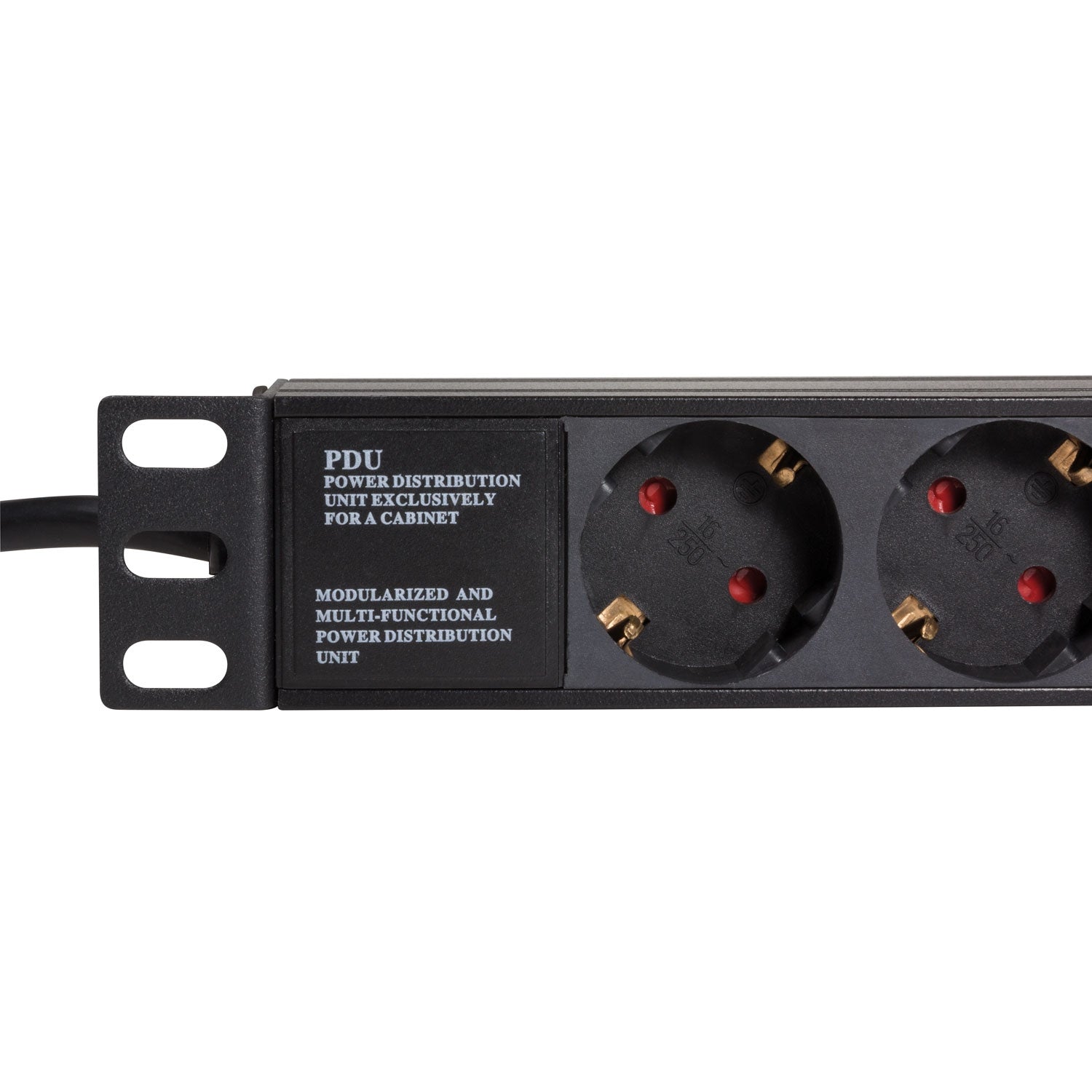

• Power outlet for mounting on 19" profile rail (1U) • Robust aluminum housing, IP20 • Socket: 9x safety socket CEE 7/3, 45° angled • Connection: Schuko plug CEE 7/7, angled • Technical data: AC 230 V / 16 A, 50 Hz, max. 3600 W • 2 m connection cable H05VVF 3x1.5² • Color: Black

Dimensions and weight: Height: 4.5 cm Width: 4.5 cm Length: 48.3 cm Weight: 0.8 kg

CE marking

Product Documents
