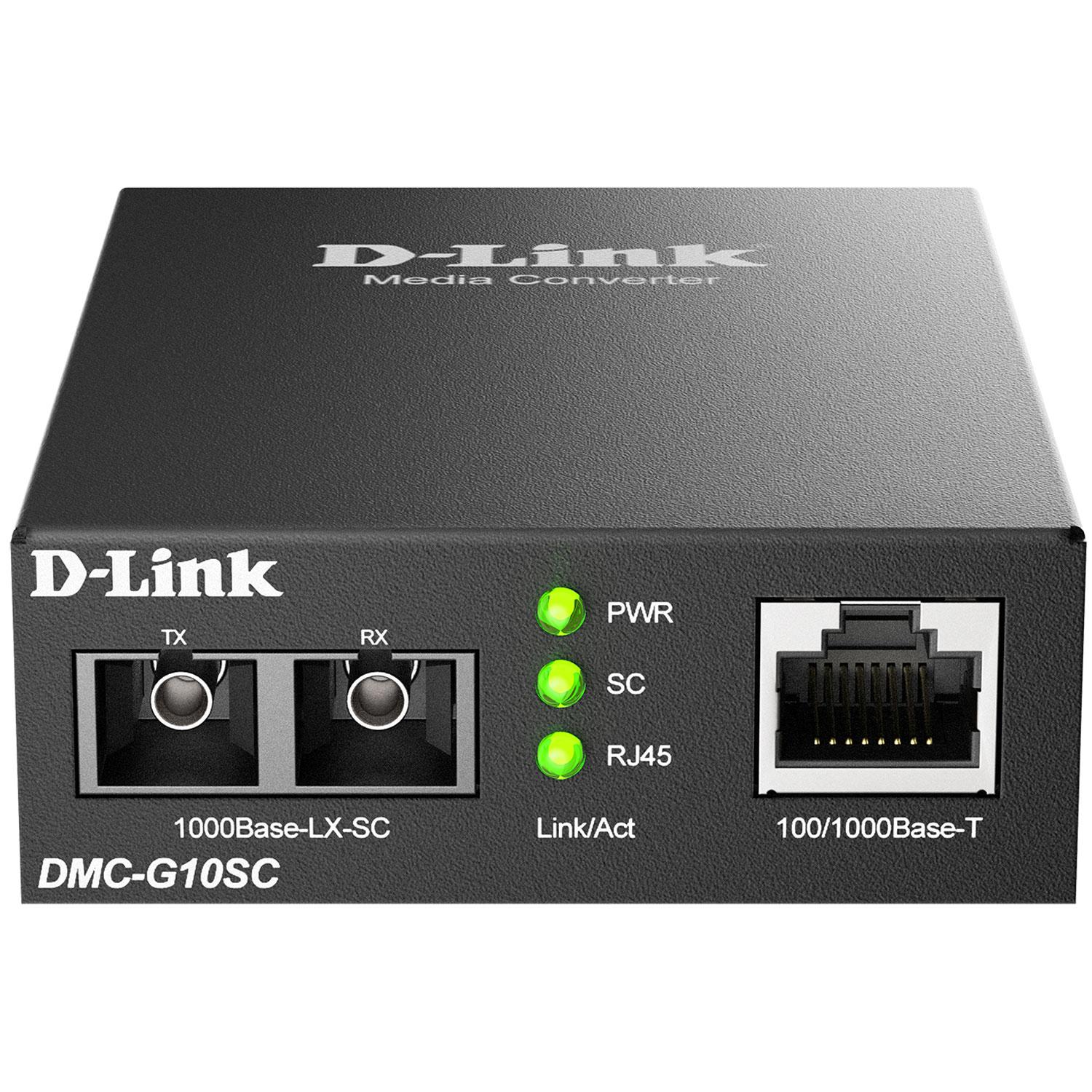

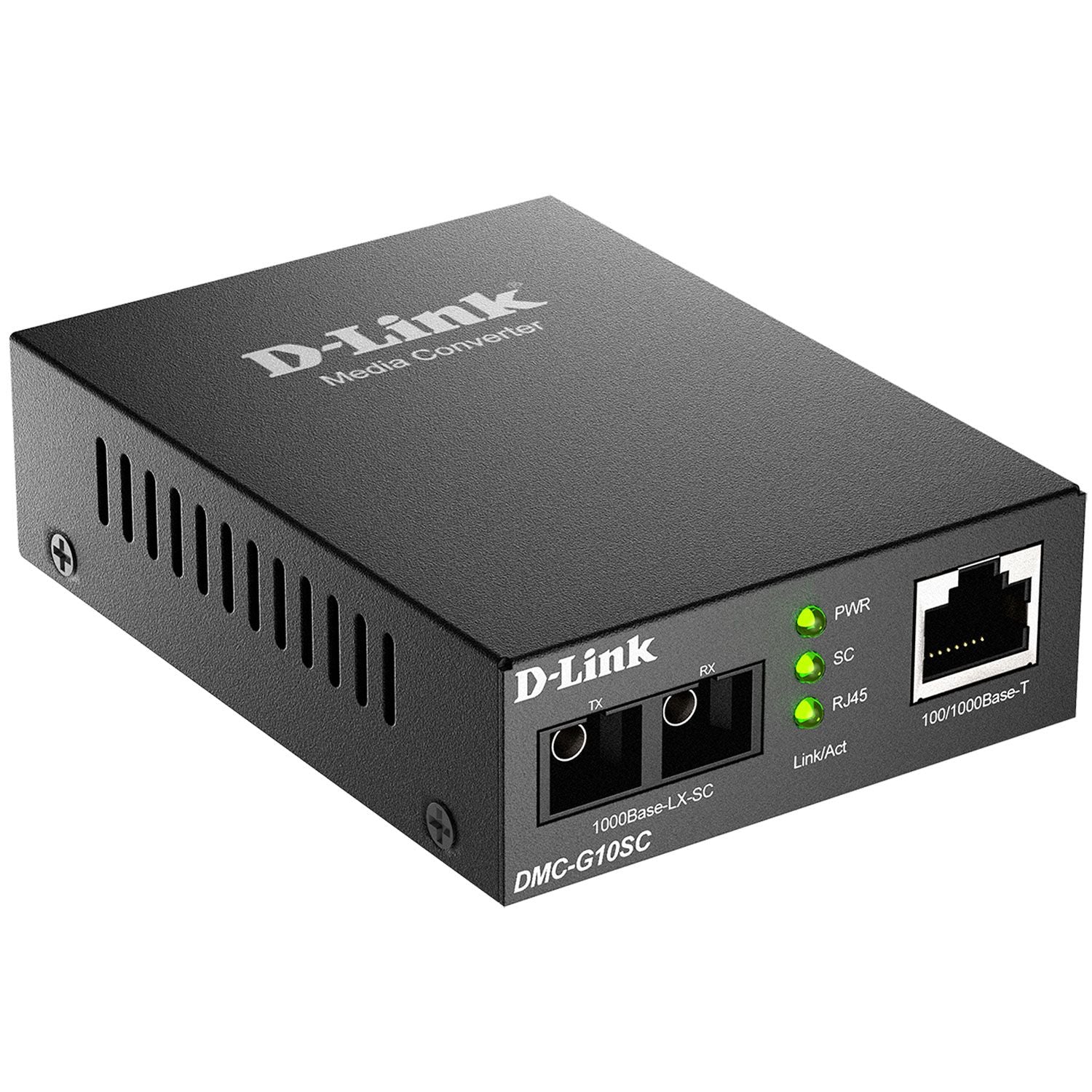

The DMC-G10SC is a media converter designed to transform a twisted pair 100/1000Base-T Gigabit Ethernet connection into a single-mode fiber 1000Base-LX Gigabit Ethernet connection, extending the connection distance up to 10 km between two devices. This media converter is equipped with an RJ-45 port for twisted pair network cable and a fiber optic SC port. Specifications: Hardware Interface: 1 x 10/100/1000Base-T port, 1 x 1000Base-LX SC port LED Indicators: Power, Link/Activity (SC), Link/Activity (RJ-45) Certifications Safety Certification: LVD EMI/EMC: CE Class B Functionality Standards and Features: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-LX, IEEE 802.3x Flow Control in full-duplex mode, Auto MDI/MDIX adjustment for copper port, Link Fault Pass-through support for link status control Physical Parameters Dimensions (L x W x H): 70.5 x 93.5 x 26 mm Weight: 124 g Environmental Conditions Power Supply: 5 V DC, 0.55 A power adapter Max Power Consumption: 1.65 W Max Fiber Optic Cable Length: Up to 10 km Temperature: Operating: 0 to 55 °C, Storage: -25 to 70 °C Humidity: 20% to 80% non-condensing
