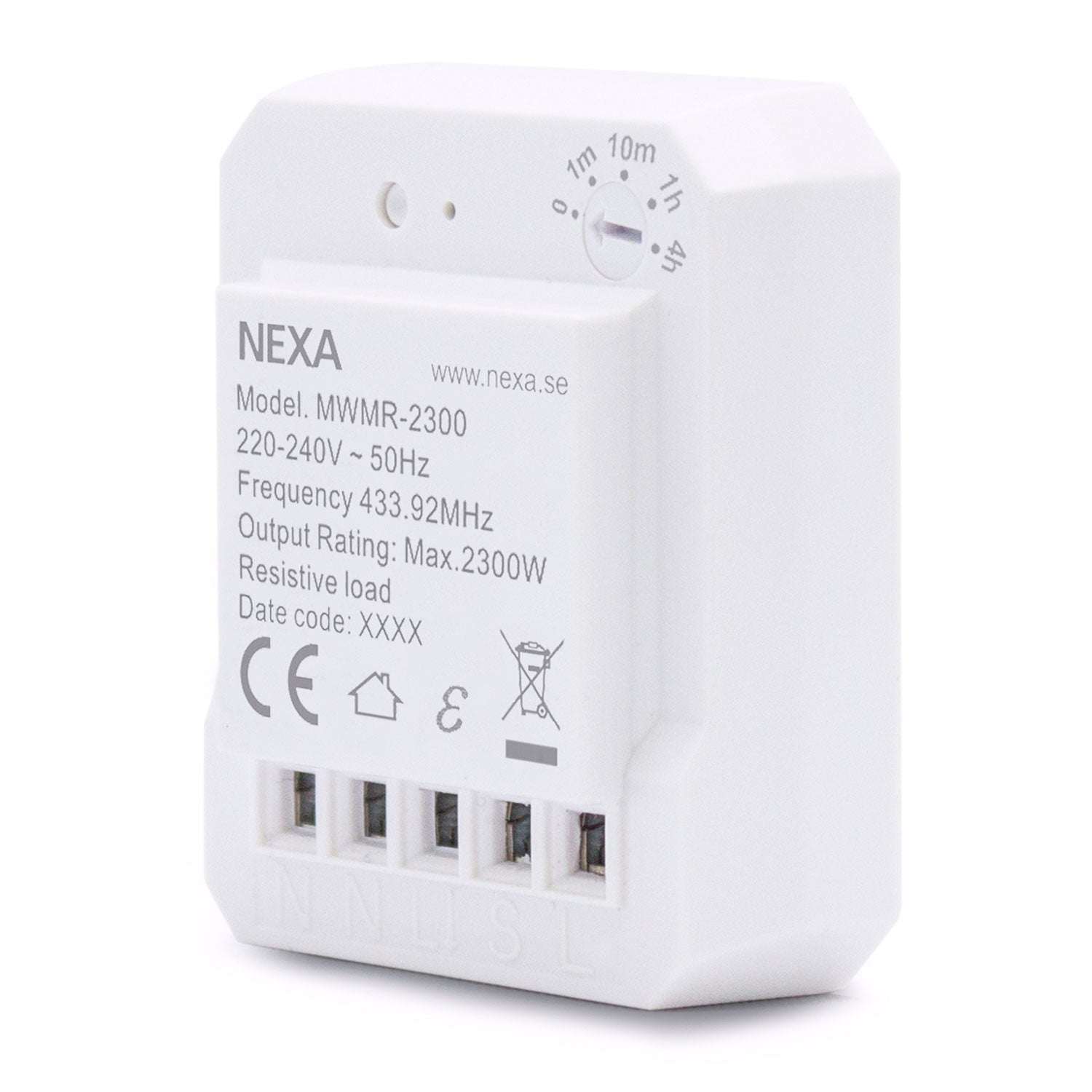

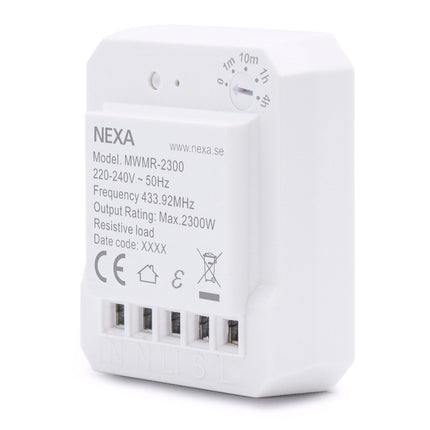

MWMR-2300: Dose relay with support for Smart Mode

Built-in receiver for fixed installation. Small and compact size for placement in a junction or appliance box. Can be connected to existing circuit breaker with 230 VAC control. The receiver needs both phase and neutral. The receiver has full compatibility with other products in System Nexa.

- Timer setting; 0/1/10/60/240 min - Smart Mode compatible - Fits stair and switch - Compatible with Nexa Bridge

Smart Mode With devices that support "Smart Mode" you can save up to 3 different favorite scenarios that are easily activated with a Nexa "Smart Mode" transmitter/remote control.

With Smart Mode you can save up to three different scenarios which are then easily activated with the Smart button (or other Smart Mode transmitter). You select your scenario by pressing the Smart button once, twice or three times. Turn everything off by holding down the button for a short while.

What does a scenario do? A scenario allows you to execute multiple events in sequence with just one command, that is, you can turn on, dim and turn off any number of devices at the same time.

Let's say you're going to lie down in bed and read. Then you want to turn off the ceiling, dim the window light to 50% but at the same time have the bedside light at 100%. No problem. You set up your devices the way you want them and save them in Scenario 1. Then all you have to do is press the Smart button and you have your "lying-in-bed-and-reading" scenario. As easy as it gets!

Specifications: Power source: 220-240 VAC~50Hz Maximum load: 2300 W (resistive load) Radio protocol / frequency: System Nexa / 433.92 MHz Range: Up to 30 meters Number of memory locations: 32 pcs Power consumption in standby: Less than 1 W IP classification: Indoor use< br />Receiver dimensions (W x H x D): 40 x 45 x 15 mm E-number: 1710819
