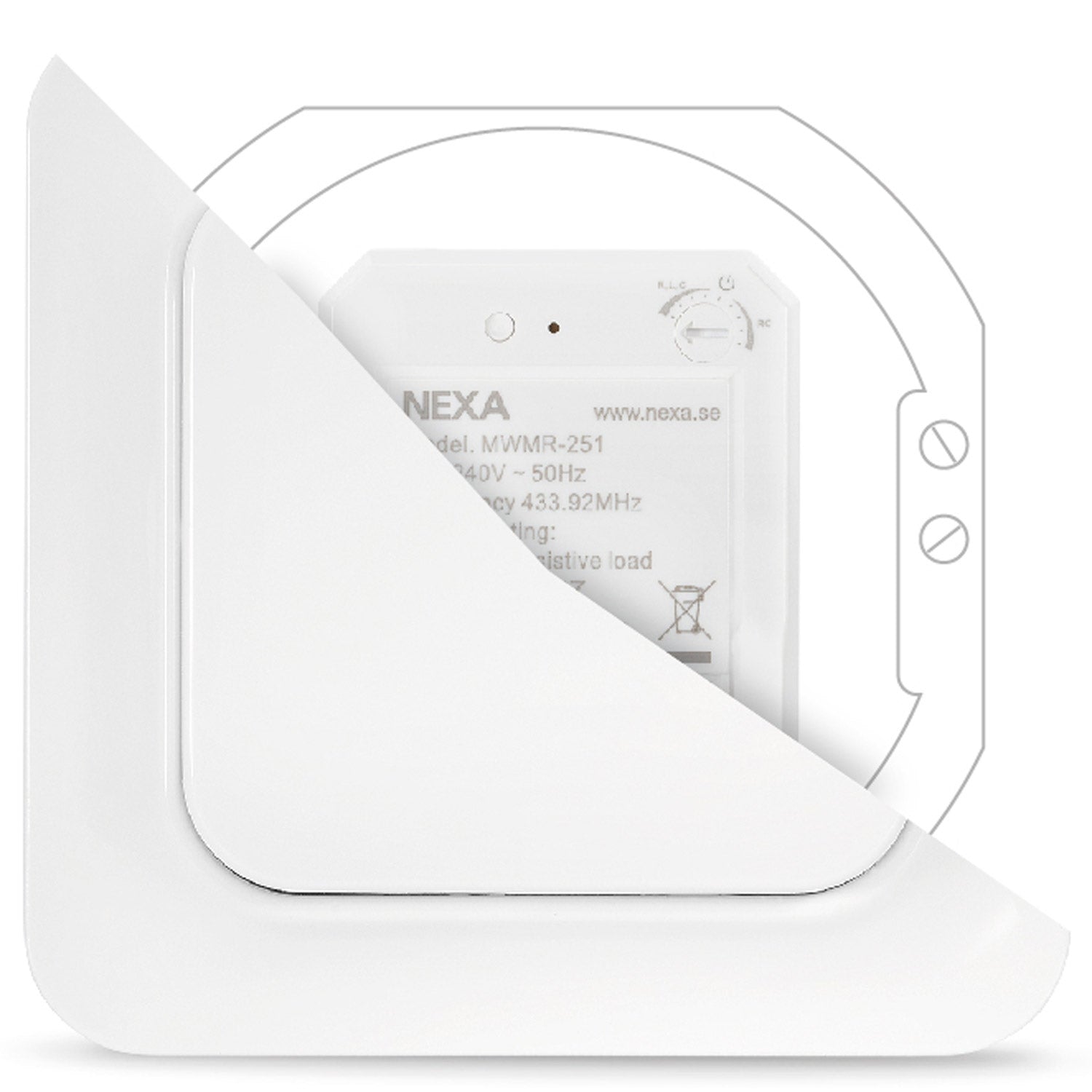

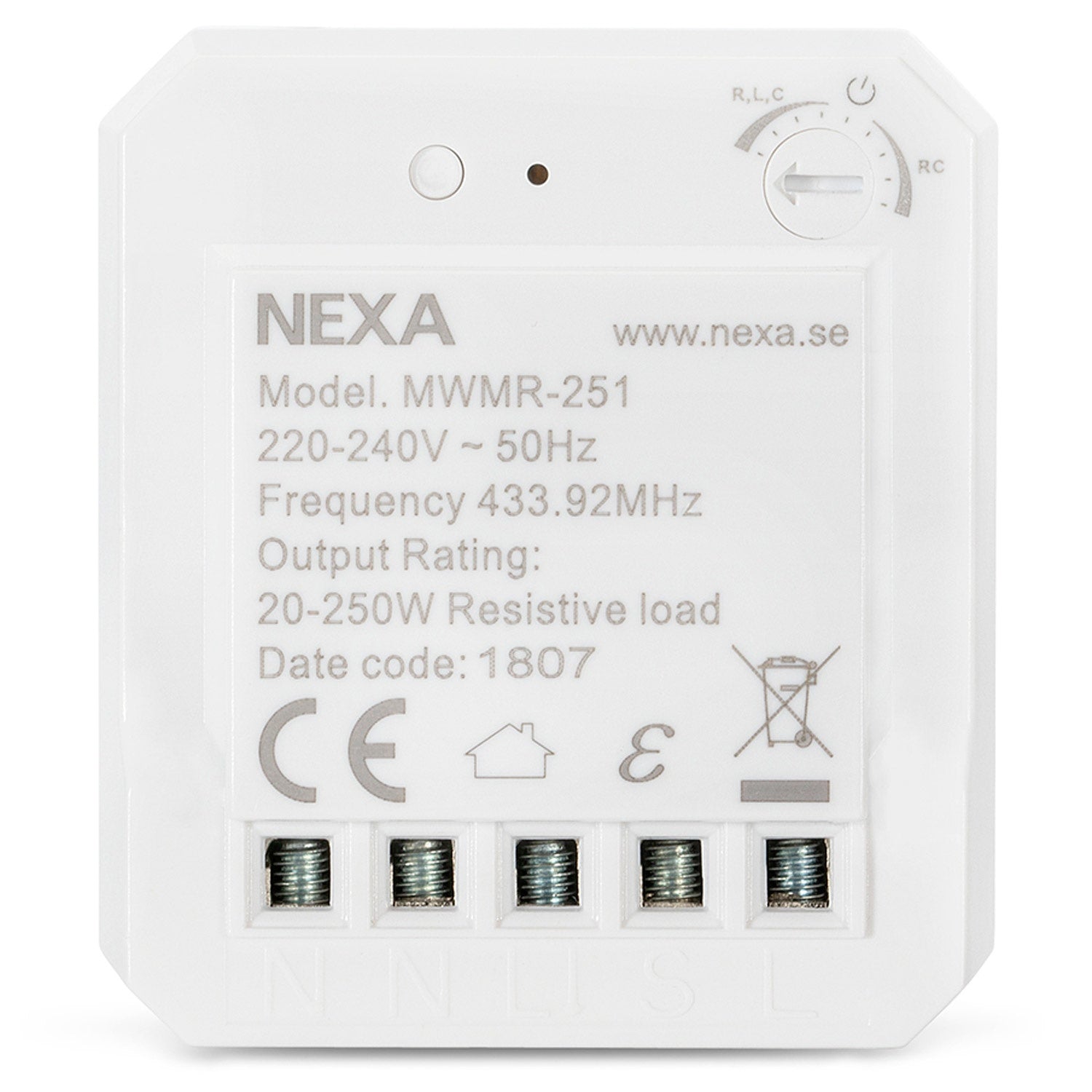

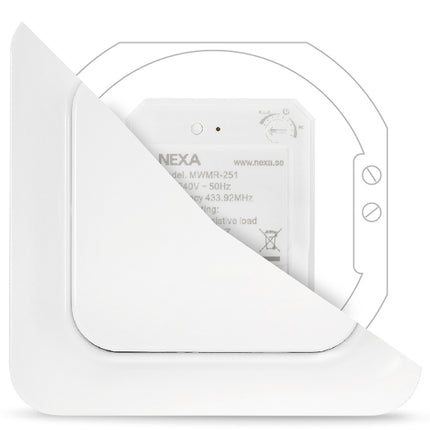

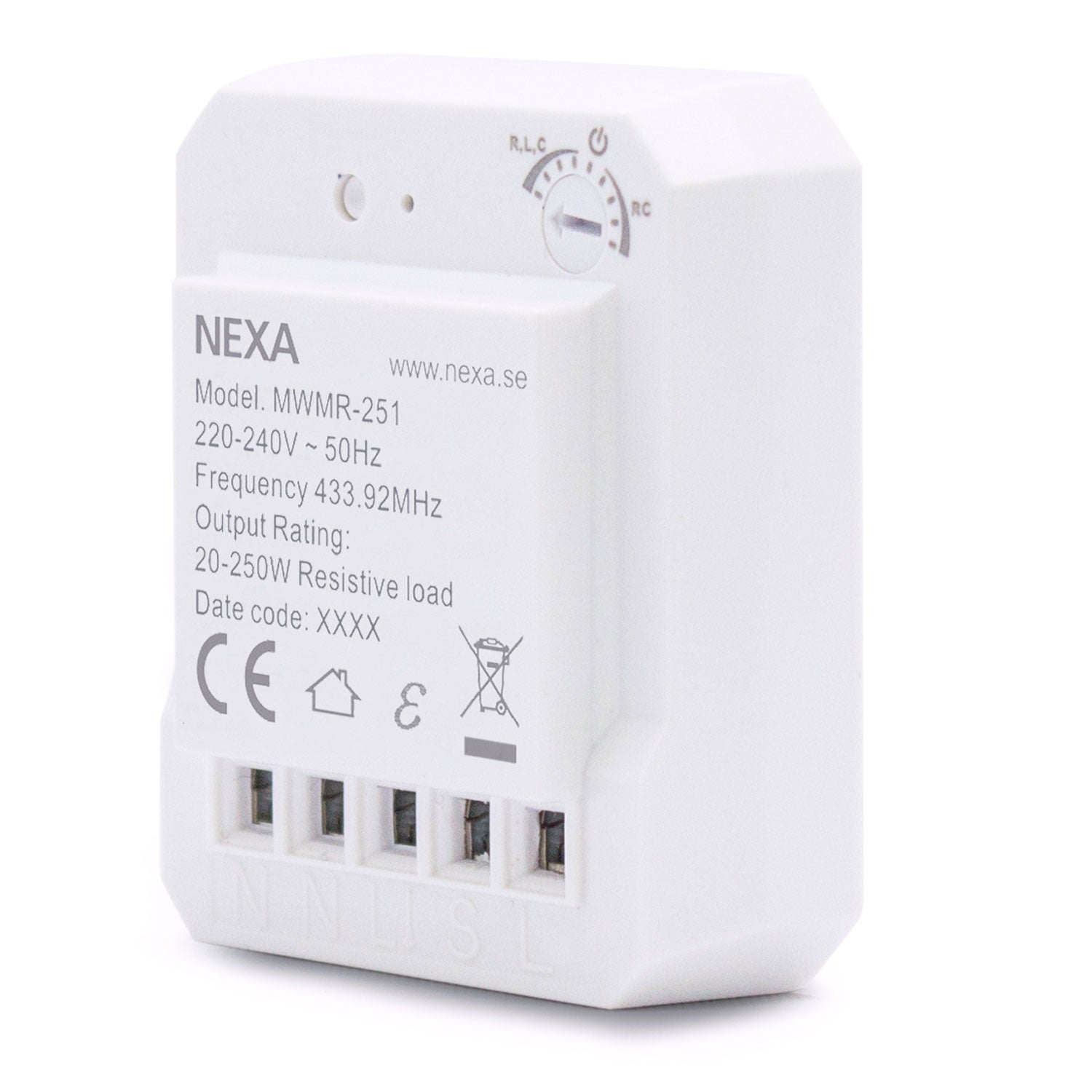

MWMR-251: Dose dimmer with Smart Mode support

Built-in dimmer for fixed installation. Small and compact size with spring-loaded switch input (230VAC). Adjustable between leading edge controlled phase dimming and trailing edge controlled phase dimming, as well as lowest dimmer level. The receiver needs both phase and neutral and has full compatibility with other products in System Nexa.

- Front and rear edge controlled - Adjustable minimum dimmer level and setting for different types of loads - Smart Mode compatible - Suitable for spring-loaded power switches

Smart Mode With devices that support "Smart Mode" you can save up to 3 different favorite scenarios which is easily activated with a Nexa "Smart Mode" transmitter/remote control.

With Smart Mode you can save up to three different scenarios which are then easily activated with the Smart button (or other Smart Mode transmitter). You select your scenario by pressing the Smart button once, twice or three times. Turn everything off by holding down the button for a short while.

What does a scenario do? A scenario allows you to execute multiple events in sequence with just one command, that is, you can turn on, dim and turn off any number of devices at the same time.

Let's say you're going to lie down in bed and read. Then you want to turn off the ceiling, dim the window light to 50% but at the same time have the bedside light at 100%. No problem. You set up your devices the way you want them and save them in Scenario 1. Then all you have to do is press the Smart button and you have your "lying-in-bed-and-reading" scenario. As easy as it gets!

Specifications: Power Source: 220-240 VAC~50Hz Max Load: 20-250 W R/RC | 40–250 W RL | 3-120 W LED Radio protocol / frequency: System Nexa / 433.92 MHz Range: Up to 30 meters Number of memory locations: 32 Power consumption in standby: Under 1 W IP classification: Indoor use Receiver dimensions (W x H x D): 40 x 45 x 15 mm E-number: 1710807
