NEMA 4X Steel Electrical Enclosure 30x20x15cm IP66
NEMA 4X Steel Electrical Enclosure 30x20x15cm IP66
NEMA 4X steel enclosure protects electrical components from water, dust, and impacts while keeping wiring organized indoors or outdoors. Built... En savoir plus
€116,99 €105,99
Paiement sécurisé avec
- Livraison gratuite
- Retours sous 30 jours
- Paiement sécurisé
Caractéristiques

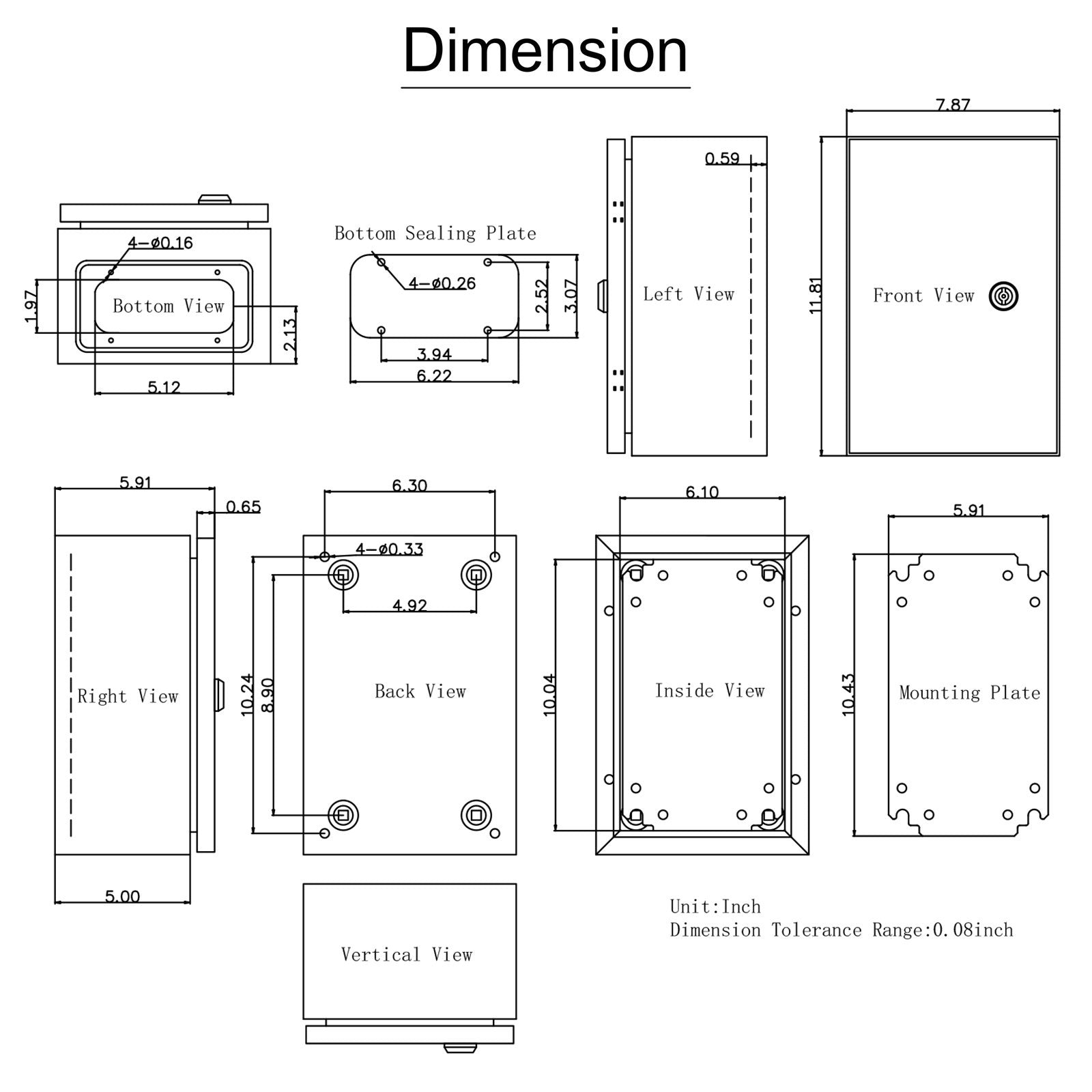

| Outer dimensions (H×W×D) | 12 × 8 × 6 in / 30 × 20 × 15 cm |
|---|---|
| Inner dimensions (H×W×D) | 11.7 × 7.8 × 4.6 in / 29.7 × 19.7 × 11.65 cm |
| Material | 1.5 mm (0.059 in) cold-rolled carbon steel |
| Mounting plate | 2 mm (0.079 in) detachable galvanized backplate |
| Backplate size | 9.8 × 6 in / 25 × 15 cm |
| Color | Gray White (RAL7035) |
| Protection | Designed to meet IP66 and NEMA 1/2/4/4X/12 specifications |
| Connection type | Hinged door; feature: Lockable |
| Coating | Epoxy polyester powder coating |
| Certifications | CE, RoHS |
| Product weight | 11.24 lb / 5.1 kg |
