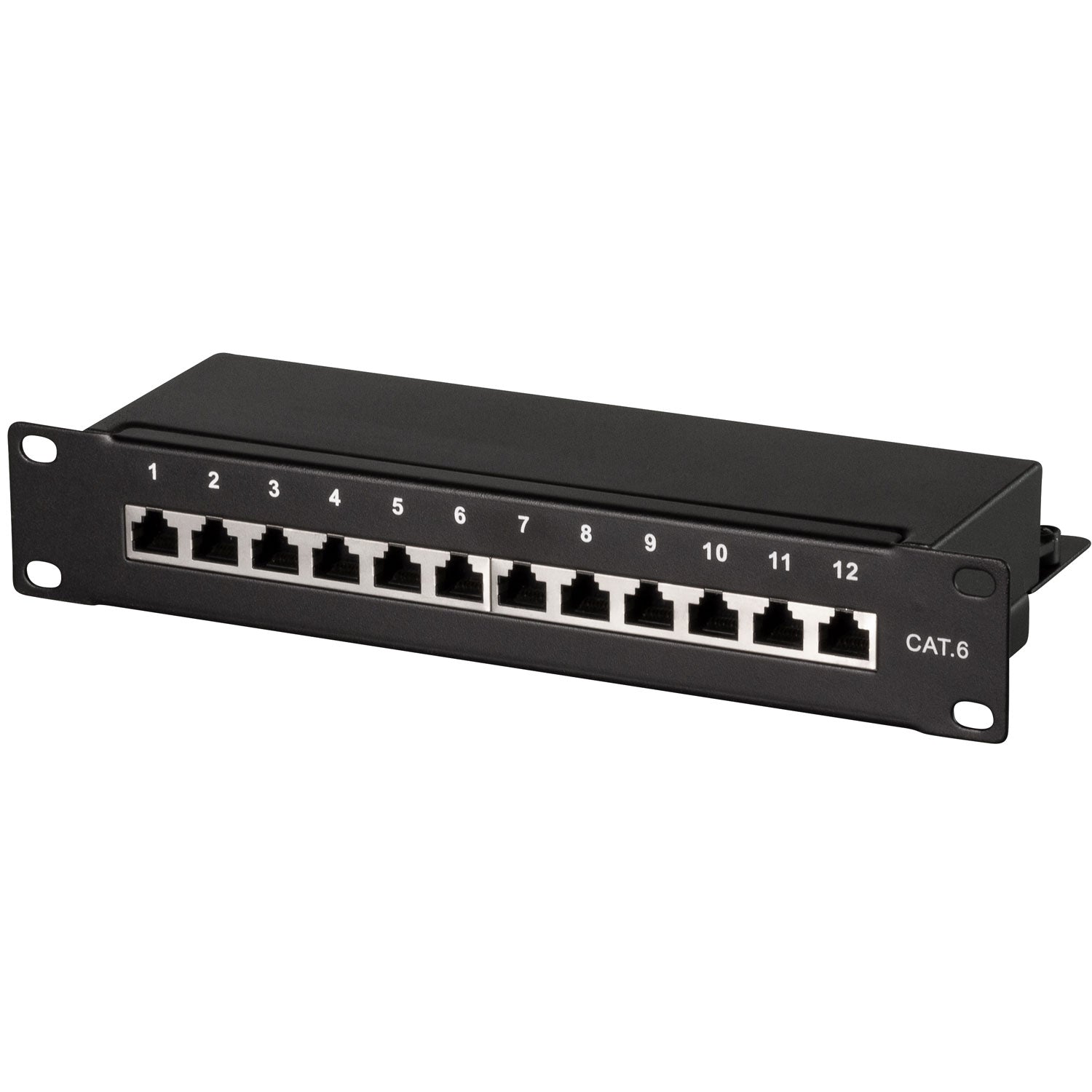

LogiLink Cat.6 Patch Panel 12-port shielded, 10-inch rack-mountable, black

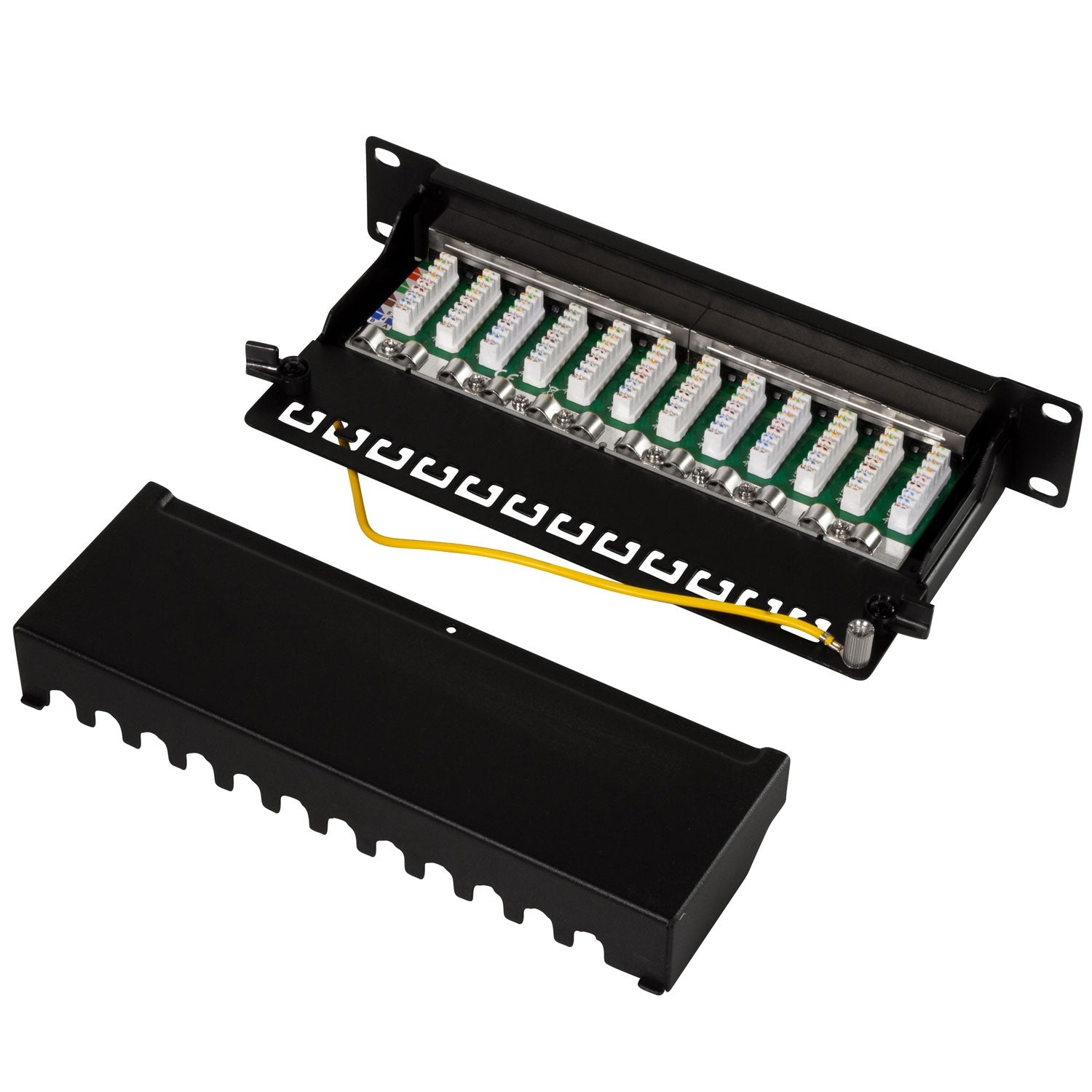

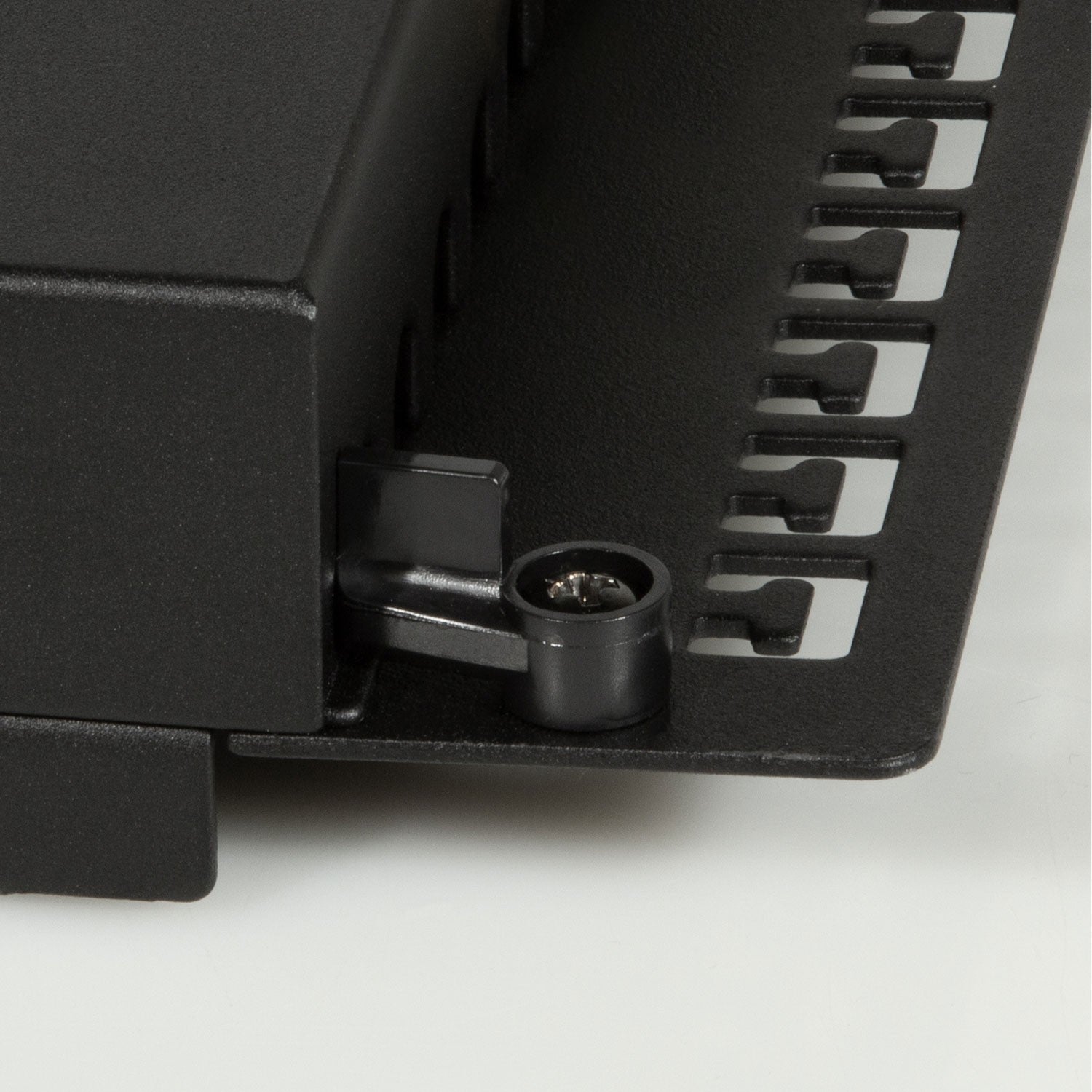

This LogiLink Patch Panel is made of robust sheet steel and painted in RAL7035. Cat.6 corresponds to the performance specification ISO/IEC 11801 CLASS E. The cable installation takes place via the LSA terminal blocks. It has 12 RJ45 connection sockets. The patch panel can be used up to 250 MHz. The screen cover is removable using two knurled screws and is therefore particularly easy to install. The strain relief is fixed using the knurled screws.

• Cat.6 Patch Panel 12-port, shielded • Suitable for 10" installation • According to Cat.6 Class E, ISO /IEC 11801 • 12 shielded RJ45 ports • Installation via LSA strips • Color coded according to EIA/TIA 568 A&B • Cable fixing with cable clamp • Ground wire mounting point • Color: Black

Dimensions: Height: 4.42 cm Width: 10.8 cm Length: 25.8 cm
